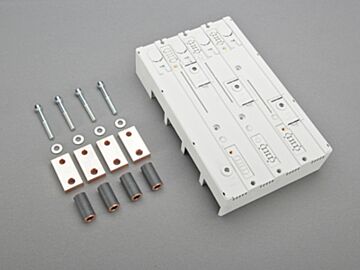

32585 Wohner busbar adapter 500 A, 4-pole

Why Choose the Busbar Adapter 500 A, 4-pole (32585)?

The busbar adapter 500 A, 4-pole (Part No. 32585) is designed for seamless integration with ABB Tmax T5 and Allen-Bradley 140G-K systems, providing reliable connection to busbars of various sizes. Its robust construction ensures durability and compliance with multiple international approvals, making it a dependable choice for industrial electrical installations.

Key Benefits

• Supports rated current up to 630 A and rated voltage of 600 V AC, suitable for demanding electrical systems.
• Compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 mm and section busbars, offering versatile application options.
• Designed for connection to the system top with neutral on the left side, facilitating straightforward installation.
• Certified to meet UL 508, CSA, UL, and DNV GL standards, ensuring safety and regulatory compliance.
• Includes multiple downloadable resources such as mounting instructions, CAD models, and technical information for ease of use.
• Mechanical component that does not carry current, ensuring safe and reliable busbar adaptation.

Technical Specifications

• Item number: 32585
• Description: busbar adapter 500 A, 4-pole
• Rated current: 630 A
• Rated voltage AC: 600 V
• Rated frequency: 50 / 60 Hz
• Dimensions (W x H x D): 185 x 300 x 35 mm
• Weight: 360.0 kg/100
• Halogen free: No
• Approval: UL 508
• Approval: CSA , UL , DNV GL
• Approval: for UL feeder circuits >250V
• Approval: type number: EPC60630-L
• Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
• Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
• Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
• Approval: CCC approval: no certification required
