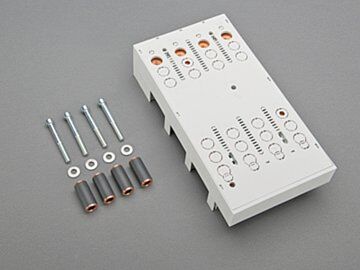

32584 Wohner busbar adapter 250 A, 4-pole
MPN: 32584
Alt. SKU: 32584000
Special Price
£122.69
£102.24
Regular Price
£153.36
Why Choose the Busbar Adapter 250 A, 4-pole (32584)?
The busbar adapter 250 A, 4-pole (32584) is designed for reliable and efficient connection within electrical distribution systems. Compatible with ABB Tmax T4 circuit breakers and suitable for various busbar sizes, it ensures seamless integration and optimal performance. Its halogen-free construction supports environmentally conscious installations, while multiple international approvals guarantee compliance with stringent safety standards.
Key Benefits
- Supports rated current of 250 A and rated voltage of 600 V AC, suitable for demanding electrical applications.
- Compatible with busbars of sizes 12, 15, 20, 25, 30 x 5, 10 mm and section busbars for versatile installation options.
- Compact dimensions (140 x 270 x 35 mm) allow for space-efficient setups.
- Halogen-free material enhances safety and environmental friendliness.
- Certified with UL 508, CSA, and DNV GL approvals ensuring high safety and quality standards.
- Designed for connection to the system top with neutral on the left side, facilitating straightforward wiring.
- Mechanical product that does not carry current itself, ensuring safe and reliable busbar connections.
Technical Specifications
- Item number: 32584
- Description: busbar adapter 250 A, 4-pole
- Rated current: 250 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 140 x 270 x 35 mm
- Weight: 180.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EPC60250-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is this busbar adapter suitable for all types of busbars?
This adapter is compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 mm and section busbars, making it versatile for many installations.
Does the busbar adapter carry electrical current?
No, the busbar adapter is a mechanical component designed to connect busbars and does not carry current itself.
What approvals does this product have?
It holds UL 508, CSA, and DNV GL approvals and is certified for UL feeder circuits above 250 V, ensuring compliance with international safety standards.
Is the product environmentally friendly?
Yes, the busbar adapter is halogen-free, supporting safer and more environmentally responsible installations.
| Manufacturer Part Number | 32584 |
|---|---|
| Barcode | 4021267325848 |
| Height | 270mm |
| Width | 140mm |
| Depth | 35mm |
| Alternative Product SKU | 32584000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
