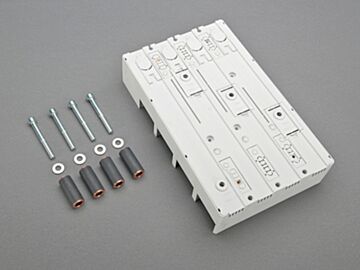

32581 Wohner busbar adapter 500 A, 4-pole
MPN: 32581
Alt. SKU: 32581000
Special Price
£224.71
£187.26
Regular Price
£280.88
Why Choose the Busbar Adapter 500 A, 4-pole (32581)?
The busbar adapter 500 A, 4-pole (part number 32581) is designed for seamless integration with Eaton NZM3-XKR13O systems and compatible with a range of busbar sizes including 12, 15, 20, 25, 30 x 5, 10 mm and section busbars. Its robust construction and precise dimensions (185 x 300 x 35 mm) ensure reliable mechanical connection without carrying current itself, providing a safe and efficient solution for electrical distribution systems. Certified to multiple international standards including UL 508 and CSA, this adapter guarantees compliance and quality for industrial applications.
Key Benefits
- Compatible with Eaton NZM3-XKR13O circuit breakers and 60Classic system.
- Supports a rated current of up to 630 A and rated voltage of 600 V AC.
- Designed for 4-pole busbar connections with neutral on the left side.
- Suitable for various busbar sizes, enhancing flexibility in installation.
- Certified by UL, CSA, and DNV GL ensuring high safety and quality standards.
- Mechanical adapter only – does not carry current, ensuring safe system integration.
- Includes comprehensive documentation and CAD data for ease of planning and installation.
Technical Specifications
- Item number: 32581
- Description: busbar adapter 500 A, 4-pole
- Rated current: 630 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 185 x 300 x 35 mm
- Weight: 350.0 kg/100
- Halogen free: No
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EPC60630-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What is the primary function of the busbar adapter 32581?
This adapter mechanically connects busbars to Eaton NZM3-XKR13O circuit breakers, ensuring secure and precise alignment without carrying current itself.
Which busbar sizes are compatible with this adapter?
It supports busbars sized 12, 15, 20, 25, 30 mm width with 5 or 10 mm thickness, as well as section busbars.
Is the busbar adapter halogen free?
No, this product is not halogen free.
What certifications does this busbar adapter hold?
It is certified under UL 508, CSA, UL, and DNV GL standards, with specific UL files and CSA classifications.
Does this adapter carry electrical current?
No, the busbar adapter is a mechanical component and does not carry current.
| Manufacturer Part Number | 32581 |
|---|---|
| Barcode | 4021267325817 |
| Height | 300mm |
| Width | 185mm |
| Depth | 35mm |
| Alternative Product SKU | 32581000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
