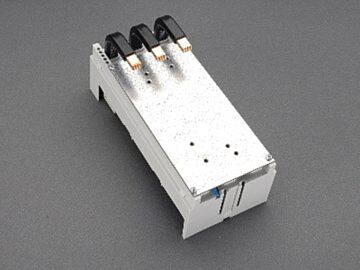

32575 Wohner busbar adapter 160 A, 3-pole

Why Choose the Busbar Adapter 160 A, 3-pole (32575)?

The busbar adapter 160 A, 3-pole (Part No. 32575) is designed for seamless connection to the system top, specifically compatible with ABB Tmax XT1 circuit breakers. It supports a variety of busbar sizes including 12, 15, 20, 25, 30 x 5, 10 and section busbars, making it a versatile choice for electrical installations. This adapter is part of the EQUES 60Classic system, ensuring reliable performance and ease of integration within established systems.

Though this is a phase-out product, it maintains compliance with key safety standards such as UL 508 and CSA, and is suitable for UL feeder circuits over 250V. Its robust construction and precise dimensions (90 x 200 x 26 mm) make it an ideal component for professional electrical setups.

Key Benefits

• Supports rated current of 160 A and rated voltage up to 600 V AC.
• Compatible with multiple busbar sizes and ABB Tmax XT1 breakers for flexible system integration.
• Certified to UL 508 and CSA standards, ensuring high safety and reliability.
• Compact dimensions allow for efficient use of space in electrical panels.
• Mechanical adapter that does not carry current but ensures secure and stable connections.
• Includes comprehensive documentation and CAD models for easy installation and planning.

Technical Specifications

• Item number: 32575
• Description: busbar adapter 160 A, 3-pole
• Rated current: 160 A
• Rated voltage AC: 600 V
• Rated frequency: 50 / 60 Hz
• Dimensions (W x H x D): 90 x 200 x 26 mm
• Weight: 81.0 kg/100
• Halogen free: No
• Approval: UL 508
• Approval: CSA , UL
• Approval: for UL feeder circuits >250V
• Approval: type number: EPC60160-L
• Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
• Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
• Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
• Approval: CCC approval: no certification required
