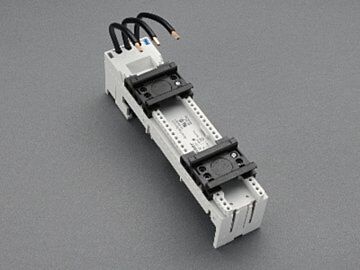

32533 Wohner busbar adapter 32 A
MPN: 32533
Alt. SKU: 32533000
Special Price
£28.56
£23.80
Regular Price
£35.69
Why Choose the Busbar Adapter 32 A (32533)?
The busbar adapter 32 A (Part No. 32533 000) is designed for seamless integration with Allen-Bradley 140M-C and 140M-D direct starters. It offers a reliable and efficient connection solution for busbars of various sizes including 12, 15, 20, 25, and 30 mm widths with 5 or 10 mm thickness. The adapter features ultrasonically sealed conductor ends and a secure click mechanism for easy and stable attachment to busbars. Its halogen-free construction ensures environmental safety, while multiple approvals including UL 508 and CSA guarantee compliance with industry standards.
Key Benefits
- Compatible with Allen-Bradley 140M-C and 140M-D direct starters
- Ultrasonically sealed conductor ends for enhanced conductivity and durability
- Secure click mechanism ensures firm attachment to busbars
- Suitable for multiple busbar sizes and sections
- Halogen-free material supports environmental safety
- Certified to UL 508, CSA, and DNV GL standards for reliable performance
- Supports UL feeder circuits over 250 V
Technical Specifications
- Item number: 32533
- Description: busbar adapter 32 A
- Rated current: 25 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 45 x 200 x 63 mm
- Weight: 32.5 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EEC6025-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is the busbar adapter suitable for carrying current?
Yes, this busbar adapter is rated for a current of 25 A and is designed to conduct electrical current safely.
What busbar sizes are compatible with this adapter?
The adapter fits busbars with widths of 12, 15, 20, 25, and 30 mm and thicknesses of 5 or 10 mm.
What is the significance of the click mechanism?
The click mechanism ensures a secure and stable connection when the adapter is pushed onto the busbar, preventing accidental disconnection.
Is this product environmentally friendly?
Yes, the busbar adapter is made from halogen-free materials, supporting environmental safety and compliance with regulations.
Are there any certifications for this product?
Yes, it holds multiple approvals including UL 508, CSA, and DNV GL, ensuring compliance with international safety standards.
| Manufacturer Part Number | 32533 |
|---|---|
| Barcode | 4021267325336 |
| Height | 200mm |
| Width | 45mm |
| Depth | 63mm |
| Alternative Product SKU | 32533000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
