32487 Wohner busbar adapter 32 A
MPN: 32487
Alt. SKU: 32487000
Special Price
£30.71
£25.59
Regular Price
£38.39
Why Choose the busbar adapter 32 A (32487)?

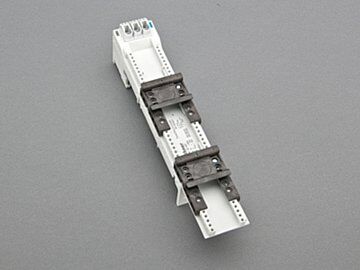

The busbar adapter 32 A (part no. 32487) is an essential mechanical component designed for reliable and flexible busbar connections within the 60Classic system. Featuring a 3-pole design and two adjustable mounting rails, it ensures secure and adaptable installation. Its spring terminals accommodate conductor sizes from 1.5 to 6 mm², allowing for versatile wiring options. The adapter supports busbars of various dimensions including 12, 15, 20, 25, and 30 mm widths with 5 or 10 mm thickness, as well as section busbars. This product is engineered for ease of use with a click mechanism that facilitates quick and secure attachment to the busbar, along with free phase selection for added convenience.
Key Benefits
- Mechanical design ensures no current is carried by the adapter itself, providing safe and stable busbar connections.
- Three-pole configuration supports multiple circuit connections in a compact form.
- Two adjustable mounting rails allow flexible positioning and secure attachment.
- Spring terminals from the front simplify wiring and maintenance, accommodating conductor sizes from 1.5 to 6 mm².
- Compatible with a wide range of busbar sizes and types, enhancing system versatility.
- Click mechanism enables quick and reliable installation onto busbars.
- Free phase selection offers flexibility during setup and operation.
- Robust construction with dimensions 45 x 260 x 63 mm and a weight of 35.5 kg per 100 units ensures durability.
Technical Specifications
- Item number: 32487
- Description: busbar adapter 32 A
- Dimensions (W x H x D): 45 x 260 x 63 mm
- Weight: 35.5 kg/100
- Halogen free: No
- Approval: CCC approval: no certification required
Frequently Asked Questions
Does the busbar adapter carry electrical current?
No, as a mechanical component, the busbar adapter does not carry current itself. It facilitates secure mechanical connection between busbars.
What busbar sizes are compatible with this adapter?
The adapter supports busbars sized 12, 15, 20, 25, and 30 mm width with 5 or 10 mm thickness, as well as section busbars.
How are conductors connected to the adapter?
Conductors are connected via spring terminals accessible from the front, accommodating wire sizes from 1.5 to 6 mm².
Is the adapter halogen free?
No, this product is not halogen free.
Are there any certifications required for this product?
No certification is required; it has CCC approval stating no certification required.
| Manufacturer Part Number | 32487 |
|---|---|
| Barcode | 4021267324872 |
| Height | 260mm |
| Width | 45mm |
| Depth | 63mm |
| Alternative Product SKU | 32487000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
