32466 Wohner busbar adapter 80 A
MPN: 32466
Alt. SKU: 32466000
Special Price
£32.66
£27.22
Regular Price
£40.82

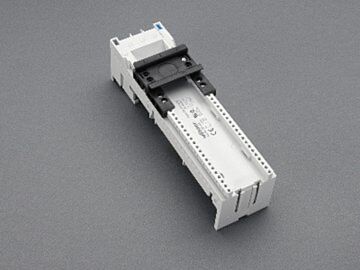

Busbar Adapter 80 A (32466)
The busbar adapter 80 A (Part No.: 32466 000) is designed for use with EQUES 60Classic systems, providing a reliable and adjustable mounting solution for busbars. It supports busbars of various sizes including 12, 15, 20, 25, 30 x 5, 10 mm and section busbars. This adapter is halogen free and complies with multiple international approvals ensuring safety and quality.
Why Choose the Busbar Adapter 80 A?
- Compatible with a wide range of busbar sizes for versatile installation options.
- Adjustable mounting rail allows for flexible positioning and easy installation.
- Operated from behind, simplifying connection and maintenance tasks.
- Halogen free construction supports environmentally responsible applications.
- Certified to UL 508, CSA, and DNV GL standards for assured safety and performance.
- Designed for UL feeder circuits above 250 V, ensuring broad application suitability.
Key Benefits
- Supports rated current up to 80 A and rated voltage up to 600 V AC.
- Compatible with both 50 Hz and 60 Hz frequency systems.
- Robust construction with dimensions 54 x 200 x 63 mm, providing a compact footprint.
- Lightweight design at 37.3 kg per 100 units facilitates handling and installation.
- Includes terminals for 16 mm² conductors, enhancing connectivity options.
- Does not carry current itself; designed to securely connect and adapt busbars within electrical systems.
Technical Specifications
- Item number: 32466
- Description: busbar adapter 80 A
- Rated current: 80 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 54 x 200 x 63 mm
- Weight: 37.3 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EEC6080-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes does this adapter support?
The adapter supports busbars sized 12, 15, 20, 25, 30 x 5, 10 mm and section busbars.
Is the busbar adapter suitable for direct current (DC) applications?
The product specifications list only AC voltage ratings; please consult technical support for DC suitability.
Does the busbar adapter carry electrical current?
No, this is a mechanical adapter designed to connect busbars and does not carry current itself.
Is the product environmentally friendly?
Yes, the busbar adapter is halogen free, supporting environmentally responsible installations.
What approvals does this product have?
It is approved under UL 508, CSA, DNV GL, and is suitable for UL feeder circuits above 250 V.
| Manufacturer Part Number | 32466 |
|---|---|
| Barcode | 4021267324667 |
| Height | 200mm |
| Width | 54mm |
| Depth | 63mm |
| Alternative Product SKU | 32466000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
