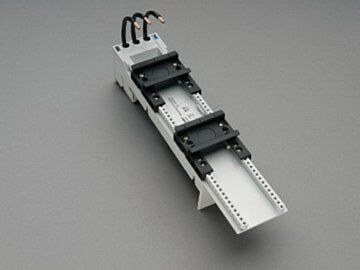

32461 Wohner busbar adapter 63 A

Why Choose the Busbar Adapter 63 A (32461)?

The Busbar Adapter 63 A (32461) is designed to provide a reliable and efficient connection solution for busbar systems. Its 3-pole configuration and adjustable mounting rails ensure versatile installation options, accommodating various busbar sizes including 12, 15, 20, 25, 30 x 5, 10 and section busbars. Manufactured to meet stringent quality standards, this adapter features ultrasonically sealed conductor ends and a secure click mechanism for easy and safe attachment to busbars. It is halogen free, supporting environmentally conscious installations.

Key Benefits

• Supports rated current of 65 A and voltage up to 600 V AC, suitable for diverse electrical applications.
• 3-pole design with 2 adjustable mounting rails for flexible and secure mounting.
• Ultrasonically sealed conductor ends ensure excellent electrical contact and durability.
• Click mechanism provides quick and reliable attachment to busbars, reducing installation time.
• Compatible with multiple busbar sizes, enhancing system adaptability.
• Halogen free construction promotes safer and more environmentally friendly installations.
• Complies with international approvals including UL 508, CSA, and DNV GL, ensuring high safety and quality standards.

Technical Specifications

• Item number: 32461
• Description: busbar adapter 63 A
• Rated current: 65 A
• Rated voltage AC: 600 V
• Rated frequency: 50 / 60 Hz
• Dimensions (W x H x D): 54 x 260 x 63 mm
• Weight: 43.0 kg/100
• Halogen free: Yes
• Approval: UL 508
• Approval: CSA , UL , DNV GL
• Approval: for UL feeder circuits >250V
• Approval: type number: EEC6063-L
• Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
• Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
• Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
• Approval: CCC approval: no certification required
