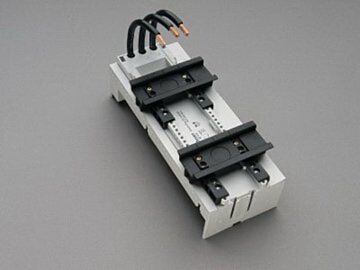

32459 Wohner busbar adapter 63 A

Why Choose the Busbar Adapter 63 A (32459)?

The busbar adapter 63 A (Part No.: 32459 000) is designed for seamless integration with the EQUES 60Classic system, providing a reliable and efficient connection solution for busbars of various sizes. Featuring two adjustable mounting rails and leads compatible with AWG 8 (10 mm²), it ensures flexibility and ease of installation. The conductor ends are ultrasonically sealed, enhancing durability and performance, while the click mechanism guarantees secure attachment to the busbar. This adapter is halogen free and carries multiple international approvals, making it a trustworthy choice for industrial electrical applications.

Key Benefits

• Supports busbars sized 12, 15, 20, 25, 30 x 5, 10 mm and section busbars for versatile use.
• Two adjustable mounting rails allow for flexible installation options.
• Ultrasonically sealed conductor ends ensure long-lasting, reliable connections.
• Click mechanism simplifies mounting onto busbars, reducing installation time.
• Halogen free construction promotes environmental safety and compliance.
• Complies with multiple international standards including UL 508, CSA, and DNV GL.
• Suitable for UL feeder circuits above 250 V, enhancing application range.

Technical Specifications

• Item number: 32459
• Description: busbar adapter 63 A
• Rated current: 65 A
• Rated voltage AC: 600 V
• Rated frequency: 50 / 60 Hz
• Dimensions (W x H x D): 81 x 200 x 63 mm
• Weight: 51.3 kg/100
• Halogen free: Yes
• Approval: UL 508
• Approval: CSA , UL , DNV GL
• Approval: for UL feeder circuits >250V
• Approval: type number: EEC6063-L
• Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
• Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
• Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
• Approval: CCC approval: no certification required
