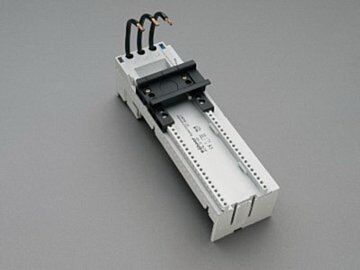

32456 Wohner busbar adapter 63 A

Why Choose the Busbar Adapter 63 A (32456)?

The busbar adapter 63 A (part number 32456) is designed for seamless integration with busbars of various sizes, including 12, 15, 20, 25, 30 x 5, 10 mm and section busbars. Featuring an adjustable mounting rail and leads compatible with AWG 8 (10 mm²), it ensures reliable and efficient connectivity. Its conductor ends are ultrasonically sealed, providing enhanced durability and safety, while the click mechanism guarantees secure attachment to the busbar. This adapter is halogen free and complies with multiple international approvals, making it a dependable choice for industrial electrical installations.

Key Benefits

• Supports rated current up to 65 A and voltage up to 600 V AC.
• Compatible with a wide range of busbar sizes for versatile application.
• Ultrasonically sealed conductor ends for improved connection integrity.
• Click mechanism ensures quick and secure mounting onto busbars.
• Halogen free construction for enhanced environmental safety.
• Complies with UL 508, CSA, UL, and DNV GL approvals for assured quality and safety.
• Adjustable mounting rail allows flexible installation options.

Technical Specifications

• Item number: 32456
• Description: busbar adapter 63 A
• Rated current: 65 A
• Rated voltage AC: 600 V
• Rated frequency: 50 / 60 Hz
• Dimensions (W x H x D): 63 x 200 x 63 mm
• Weight: 44.9 kg/100
• Halogen free: Yes
• Approval: UL 508
• Approval: CSA , UL , DNV GL
• Approval: for UL feeder circuits >250V
• Approval: type number: EEC6063-L
• Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
• Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
• Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
• Approval: CCC approval: no certification required
