32455 Wohner busbar adapter 63 A
MPN: 32455
Alt. SKU: 32455000
Special Price
£27.20
£22.67
Regular Price
£34.01
Why Choose the Busbar Adapter 63 A (32455)?

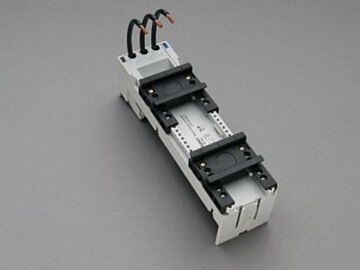

The busbar adapter 63 A (Part No.: 32455 000) is designed for reliable and efficient electrical connections within the EQUES 60Classic system. Featuring two adjustable mounting rails and compatibility with various busbar sizes, this adapter ensures a secure and flexible installation. Its conductor ends are ultrasonically sealed, providing enhanced durability and safety, while the click mechanism guarantees a firm fit when pushed onto the busbar. Additionally, the product is halogen-free, aligning with environmental and safety standards.
Key Benefits
- Supports rated current of 65 A and voltage up to 600 V AC, suitable for diverse electrical applications.
- Equipped with two adjustable mounting rails for versatile installation options.
- Compatible with busbars of sizes 12, 15, 20, 25, 30 x 5, 10 mm and section busbars, enhancing system flexibility.
- Ultrasonically sealed conductor ends improve connection integrity and reduce maintenance needs.
- Click mechanism ensures quick and secure attachment to busbars, saving installation time.
- Halogen-free construction promotes safer operation and environmental compliance.
- Certified with multiple approvals including UL 508, CSA, UL, and DNV GL for assured quality and safety.
Technical Specifications
- Item number: 32455
- Description: busbar adapter 63 A
- Rated current: 65 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 54 x 200 x 63 mm
- Weight: 41.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EEC6063-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is the busbar adapter suitable for all busbar sizes?
It is compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 mm and section busbars, providing broad application flexibility.
Does the busbar adapter carry current?
Yes, this is an electrical component designed to conduct current with a rated current of 65 A.
What approvals does this product have?
The busbar adapter holds multiple certifications including UL 508, CSA, UL, and DNV GL, ensuring compliance with international safety standards.
Is the product environmentally friendly?
Yes, it is halogen-free, which contributes to safer and more environmentally responsible usage.
| Manufacturer Part Number | 32455 |
|---|---|
| Barcode | 4021267324551 |
| Height | 200mm |
| Width | 54mm |
| Depth | 63mm |
| Alternative Product SKU | 32455000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
