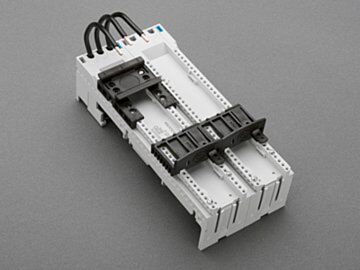

32452 Wohner busbar adapter 25 A
MPN: 32452
Alt. SKU: 32452000
Special Price
£53.72
£44.77
Regular Price
£67.15
Why Choose the Busbar Adapter 25 A (32452)?
The busbar adapter 25 A (32452) is designed for seamless integration with reversing starters Eaton PKZM01 and PKE12. Its robust construction ensures reliable performance in electrical distribution systems. Featuring ultrasonically sealed conductor ends and a secure click mechanism, this adapter guarantees a firm and safe connection to busbars of various sizes. Additionally, it is halogen-free, supporting environmentally conscious installations.
Key Benefits
- Compatible with multiple busbar sizes: 12, 15, 20, 25, 30 x 5, 10 mm and section busbars
- Ultrasonically sealed conductor ends for enhanced durability and conductivity
- Secure click mechanism for easy and reliable attachment to busbars
- Halogen-free material supports safer and eco-friendly applications
- Certified to multiple international standards including UL 508, CSA, and DNV GL
- Designed for use with reversing starters Eaton PKZM01 and PKE12
- Mechanical product – does not carry current itself but facilitates electrical connection
Technical Specifications
- Item number: 32452
- Description: busbar adapter 25 A
- Rated current: 25 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 90 x 200 x 63 mm
- Weight: 54.6 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EEC6025-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes are compatible with this adapter?
The adapter fits busbars sized 12, 15, 20, 25, 30 x 5, 10 mm as well as section busbars.
Is the busbar adapter suitable for carrying current directly?
No, this is a mechanical adapter that facilitates connection but does not carry current itself.
What approvals does this product have?
It holds UL 508, CSA, UL, and DNV GL approvals and is suitable for UL feeder circuits over 250V.
Is the product environmentally friendly?
Yes, it is halogen-free, supporting safer and more sustainable electrical installations.
Where can I find technical documentation and CAD models?
Technical information, mounting instructions, and CAD models are available via the provided download links.
| Manufacturer Part Number | 32452 |
|---|---|
| Barcode | 4021267324520 |
| Height | 200mm |
| Width | 90mm |
| Depth | 63mm |
| Alternative Product SKU | 32452000 |
| Manufacturer | Wohner |
| Packed Quantity | 2 |
