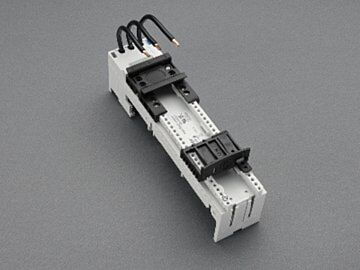

32450 Wohner busbar adapter 25 A

Why Choose the Busbar Adapter 25 A (32450)?

The busbar adapter 25 A (32450) is designed for seamless integration with Eaton PKZM01 and PKE12 direct starters, ensuring reliable and efficient electrical connections. Its ultrasonic sealed conductor ends and secure click mechanism provide a robust and durable connection to busbars of various sizes. This adapter is halogen free, supporting safer and more environmentally friendly installations. Certified with multiple international approvals, it guarantees compliance and safety in demanding industrial environments.

Key Benefits

• Compatible with Eaton PKZM01 and PKE12 direct starters for easy installation.
• Ultrasonically sealed conductor ends ensure optimal conductivity and longevity.
• Click mechanism simplifies attachment to busbars, enhancing installation speed and security.
• Suitable for a wide range of busbar sizes: 12, 15, 20, 25, 30 x 5, 10 mm and section busbars.
• Halogen free material supports safer electrical environments and reduces toxic emissions.
• Complies with UL 508, CSA, UL, and DNV GL approvals, ensuring high safety and quality standards.
• Designed for use in UL feeder circuits above 250 V, meeting stringent electrical requirements.

Technical Specifications

• Item number: 32450
• Description: busbar adapter 25 A
• Rated current: 25 A
• Rated voltage AC: 600 V
• Rated frequency: 50 / 60 Hz
• Dimensions (W x H x D): 45 x 200 x 63 mm
• Weight: 33.0 kg/100
• Halogen free: Yes
• Approval: UL 508
• Approval: CSA , UL , DNV GL
• Approval: for UL feeder circuits >250V
• Approval: type number: EEC6025-L
• Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
• Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
• Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
• Approval: CCC approval: no certification required
