32449 Wohner busbar adapter 32 A
MPN: 32449
Alt. SKU: 32449000
Special Price
£28.74
£23.95
Regular Price
£35.93
Why Choose the Busbar Adapter 32 A (32449)?

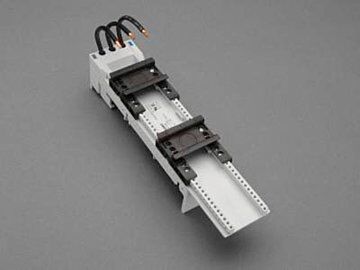

The busbar adapter 32 A (part number 32449) is designed for reliable and efficient electrical connections within your system. Featuring a 3-pole configuration and two adjustable mounting rails, it ensures versatile installation options. Its conductor ends are ultrasonically sealed, providing enhanced durability and safety. The click mechanism allows for secure and easy attachment onto busbars, making it an ideal choice for busbars sized 12, 15, 20, 25, 30 x 5, 10 mm and section busbars. This adapter is halogen free and complies with multiple international approvals, ensuring high standards of quality and safety.
Key Benefits
- Supports rated current of 30 A and rated voltage of 600 V AC.
- Compatible with busbars of various sizes for flexible application.
- Ultrasonically sealed conductor ends for increased reliability.
- Click mechanism for quick and secure mounting onto busbars.
- Halogen free material for environmentally friendly installations.
- Complies with UL 508, CSA, UL, and DNV GL approvals for safety and quality assurance.
- Includes two adjustable mounting rails for adaptable installation.
- Mechanical product that does not carry current itself, ensuring safe integration.
Technical Specifications
- Item number: 32449
- Description: busbar adapter 32 A
- Rated current: 30 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 54 x 260 x 63 mm
- Weight: 43.3 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EEC6032-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes does this adapter support?
The busbar adapter 32 A supports busbars sized 12, 15, 20, 25, 30 x 5, 10 mm and section busbars.
Is this product suitable for high current applications?
This adapter is rated for a current of 30 A and a voltage of up to 600 V AC, suitable for typical industrial electrical systems.
Does the busbar adapter carry current itself?
No, as a mechanical adapter, it does not carry current itself but facilitates secure connections between busbars.
Are there any environmental considerations for this product?
Yes, the busbar adapter is halogen free, making it an environmentally friendly choice for electrical installations.
What certifications does this product have?
It holds multiple approvals including UL 508, CSA, UL, and DNV GL, ensuring compliance with international safety standards.
| Manufacturer Part Number | 32449 |
|---|---|
| Barcode | 4021267324490 |
| Height | 260mm |
| Width | 54mm |
| Depth | 63mm |
| Alternative Product SKU | 32449000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
