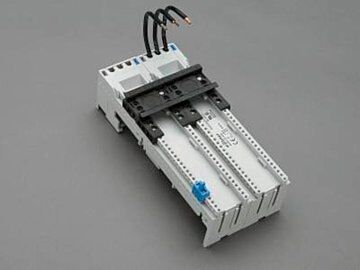

32448 Wohner busbar adapter 25 A
MPN: 32448
Alt. SKU: 32448000
Special Price
£50.09
£41.74
Regular Price
£62.60
Why Choose the Busbar Adapter 25 A (32448)?
The busbar adapter 25 A (32448) is designed for reliable and efficient electrical connections in industrial applications. It is compatible with reversing starters Siemens S00 and features a screw connection for secure installation. Its ultrasonic sealing of conductor ends and click mechanism ensures a firm attachment to busbars, enhancing safety and ease of use. Suitable for various busbar sizes, it supports a rated current of 25 A and a rated voltage of 600 V AC, making it a versatile choice for your electrical system needs.
Key Benefits
- Ultrasonically sealed conductor ends for improved connection integrity.
- Click mechanism for easy and secure mounting onto busbars.
- Compatible with multiple busbar dimensions (12, 15, 20, 25, 30 x 5, 10 mm).
- Halogen-free construction for enhanced environmental safety.
- Certified to UL 508, CSA, and DNV GL standards ensuring high quality and compliance.
- Suitable for UL feeder circuits above 250 V.
- Lightweight design with a weight of 54.1 kg per 100 units for ease of handling.
Technical Specifications
- Item number: 32448
- Description: busbar adapter 25 A
- Rated current: 25 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 90 x 200 x 63 mm
- Weight: 54.1 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EEC6025-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes are compatible with this adapter?
The busbar adapter 25 A (32448) is compatible with busbars sized 12, 15, 20, 25, and 30 mm in width and 5 or 10 mm in thickness.
Does this adapter carry current directly?
This is a mechanical busbar adapter designed to connect busbars and does not carry current itself but facilitates secure electrical connections.
Is the product environmentally friendly?
Yes, the busbar adapter is halogen-free, making it a safer choice for the environment.
What certifications does this product have?
It holds multiple approvals including UL 508, CSA, and DNV GL, and is suitable for UL feeder circuits above 250 V.
Where can I find technical documentation and CAD models?
Technical information, mounting instructions, and CAD models in various formats are available for download from the manufacturer's website.
| Manufacturer Part Number | 32448 |
|---|---|
| Barcode | 4021267324483 |
| Height | 200mm |
| Width | 90mm |
| Depth | 63mm |
| Alternative Product SKU | 32448000 |
| Manufacturer | Wohner |
| Packed Quantity | 2 |
