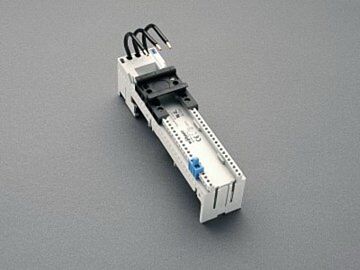

32445 Wohner busbar adapter 25 A
MPN: 32445
Alt. SKU: 32445000
Special Price
£27.47
£22.89
Regular Price
£34.33
Why Choose the Busbar Adapter 25 A (32445)?
The busbar adapter 25 A (32445) is designed for seamless integration with direct starters Siemens S00 featuring screw connections. It supports various busbar sizes, ensuring versatile application in electrical distribution systems. Its ultrasonically sealed conductor ends and secure click mechanism provide reliable and safe connections, enhancing operational efficiency and safety.
Key Benefits
- Compatible with multiple busbar dimensions: 12, 15, 20, 25, 30 x 5, 10 mm and section busbars.
- Ultrasonically sealed conductor ends for enhanced durability and conductivity.
- Secure click mechanism ensures firm attachment to busbars, reducing installation time.
- Halogen-free construction supports environmentally responsible installations.
- Comprehensive approvals including UL 508, CSA, UL, and DNV GL for assured quality and safety.
- Lightweight design at 33.0 kg/100, facilitating easier handling and installation.
Technical Specifications
- Item number: 32445
- Description: busbar adapter 25 A
- Rated current: 25 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 45 x 200 x 63 mm
- Weight: 33.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EEC6025-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes are compatible with this adapter?
The adapter fits busbars sized 12, 15, 20, 25, 30 x 5, 10 mm as well as section busbars.
Does this busbar adapter carry current?
Yes, it is rated for a current of 25 A and is designed to conduct electrical current safely.
Is the busbar adapter halogen-free?
Yes, the product is halogen-free, supporting safer and more environmentally friendly installations.
What approvals does this product have?
It holds multiple approvals including UL 508, CSA, UL, and DNV GL, ensuring compliance with international standards.
Where can I find technical documentation and CAD models?
Technical information, mounting instructions, and CAD models are available via the product downloads on the manufacturer's website.
| Manufacturer Part Number | 32445 |
|---|---|
| Barcode | 4021267324452 |
| Height | 200mm |
| Width | 45mm |
| Depth | 63mm |
| Alternative Product SKU | 32445000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
