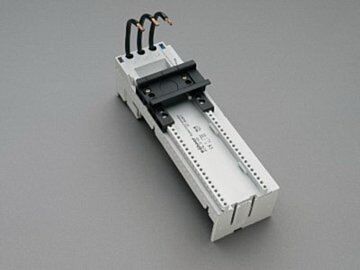

32443 Wohner busbar adapter 32 A
MPN: 32443
Alt. SKU: 32443000
Special Price
£34.58
£28.82
Regular Price
£43.22
Why Choose the Busbar Adapter 32 A (32443)?
The busbar adapter 32 A (Part No.: 32443 000) is designed for seamless integration with the EQUES 60Classic system. It offers reliable and efficient connection solutions for busbars of various sizes, including 12, 15, 20, 25, 30 x 5, 10 and section busbars. Featuring an adjustable mounting rail and ultrasonically sealed conductor ends, this adapter ensures secure and durable connections. The click mechanism provides easy and precise mounting onto busbars, enhancing installation speed and safety. Additionally, it is halogen free, supporting environmentally responsible installations.
Key Benefits
- Compatible with multiple busbar sizes for versatile application
- Ultrasonically sealed conductor ends for enhanced connection reliability
- Click mechanism for quick and secure mounting on busbars
- Adjustable mounting rail for flexible installation
- Halogen free material for safer and eco-friendly use
- Approved by UL, CSA, and DNV GL, ensuring compliance with international standards
- Supports UL feeder circuits above 250 V
Technical Specifications
- Item number: 32443
- Description: busbar adapter 32 A
- Rated current: 30 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 63 x 200 x 63 mm
- Weight: 44.5 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EEC6032-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes are compatible with this adapter?
This busbar adapter is compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 mm as well as section busbars.
Does the busbar adapter carry current?
Yes, this is an electrical busbar adapter designed to carry current up to 30 A.
Is the busbar adapter halogen free?
Yes, the busbar adapter is halogen free, making it suitable for safer and environmentally friendly installations.
What approvals does this product have?
The busbar adapter holds approvals including UL 508, CSA, UL, and DNV GL. It is certified for UL feeder circuits above 250 V and has specific UL and CSA file references.
Are there downloadable resources available?
Yes, technical information, mounting instructions, CAD models, dimensioned drawings, and declarations of conformity are available for download.
| Manufacturer Part Number | 32443 |
|---|---|
| Barcode | 4021267324438 |
| Height | 200mm |
| Width | 63mm |
| Depth | 63mm |
| Alternative Product SKU | 32443000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
