32442 Wohner busbar adapter 32 A
MPN: 32442
Alt. SKU: 32442000
Special Price
£22.84
£19.03
Regular Price
£28.55
Why Choose the Busbar Adapter 32 A (32442)?

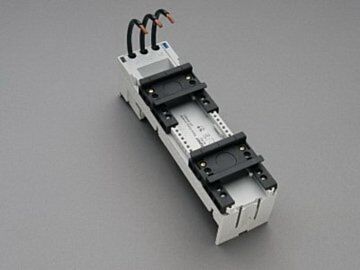

The busbar adapter 32 A (part number 32442) is designed for seamless integration with the EQUES 60Classic system. It features two adjustable mounting rails and is compatible with various busbar sizes including 12, 15, 20, 25, 30 x 5, 10 mm and section busbars. This adapter ensures secure connections with ultrasonically sealed conductor ends and a reliable click mechanism for easy installation onto busbars. Its halogen-free construction supports environmentally conscious applications.
Key Benefits
- Compatible with multiple busbar dimensions for versatile use
- Ultrasonically sealed conductor ends for enhanced connection reliability
- Click mechanism enables quick and secure mounting on busbars
- Halogen-free material supports safer and eco-friendly installations
- Approved to UL 508, CSA, UL, and DNV GL standards ensuring compliance and safety
- Mechanical product – does not carry current itself, ensuring safe integration
Technical Specifications
- Item number: 32442
- Description: busbar adapter 32 A
- Rated current: 30 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 54 x 200 x 63 mm
- Weight: 38.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EEC6032-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes is this adapter compatible with?
The adapter fits busbars sized 12, 15, 20, 25, 30 x 5, 10 mm as well as section busbars.
Does this busbar adapter carry electrical current?
No, this is a mechanical adapter and does not carry current itself. It facilitates secure connections between busbars and other components.
Is the product environmentally friendly?
Yes, the busbar adapter is halogen free, supporting safer and more environmentally responsible installations.
What approvals does this product have?
It holds approvals including UL 508, CSA, UL, and DNV GL, and is suitable for UL feeder circuits over 250V.
Are there technical documents available?
Yes, mounting instructions, CAD models, dimensioned drawings, and EU declarations of conformity are available for download.
| Manufacturer Part Number | 32442 |
|---|---|
| Barcode | 4021267324421 |
| Height | 200mm |
| Width | 54mm |
| Depth | 63mm |
| Alternative Product SKU | 32442000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
