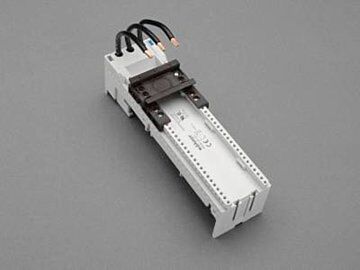

32441 Wohner busbar adapter 32 A
MPN: 32441
Alt. SKU: 32441000
Special Price
£22.09
£18.41
Regular Price
£27.61
Why Choose the Busbar Adapter 32 A (32441)?
The busbar adapter 32 A (32441) is designed for seamless integration with the EQUES 60Classic system, providing a reliable and efficient connection solution for busbars. Featuring an adjustable mounting rail and compatibility with various busbar sizes, this adapter ensures flexibility and ease of installation. Its conductor ends are ultrasonically sealed, enhancing durability and performance, while the click mechanism guarantees a secure fit when pushed onto the busbar. Additionally, the product is halogen-free, supporting safer and more environmentally friendly applications.
Key Benefits
- Compatible with busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
- Adjustable mounting rail for versatile installation
- Ultrasonically sealed conductor ends for enhanced reliability
- Secure click mechanism for easy and safe attachment to busbars
- Halogen-free construction for improved safety and environmental compliance
- Approved to UL 508, CSA, UL, and DNV GL standards
- Suitable for UL feeder circuits over 250 V
Technical Specifications
- Item number: 32441
- Description: busbar adapter 32 A
- Rated current: 30 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 54 x 200 x 63 mm
- Weight: 36.6 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EEC6032-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes is this adapter compatible with?
The busbar adapter 32 A (32441) is compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 mm as well as section busbars.
Does this product carry current?
Yes, this is an electrical busbar adapter designed to carry current up to 30 A.
Is the product halogen-free?
Yes, the busbar adapter is halogen-free, making it safer for use in various environments.
What approvals does this product have?
The adapter holds approvals including UL 508, CSA, UL, and DNV GL, and is suitable for UL feeder circuits over 250 V.
Are there installation instructions available?
Yes, mounting instructions and other technical documents are available for download from the manufacturer’s website.
| Manufacturer Part Number | 32441 |
|---|---|
| Barcode | 4021267324414 |
| Height | 200mm |
| Width | 54mm |
| Depth | 63mm |
| Alternative Product SKU | 32441000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
