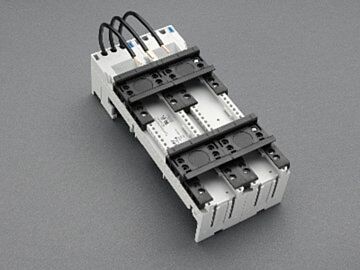

32440 Wohner busbar adapter 16 A
MPN: 32440
Alt. SKU: 32440000
Special Price
£46.67
£38.89
Regular Price
£58.33
Why Choose the Busbar Adapter 16 A (32440)?
The busbar adapter 16 A (32440) is designed for seamless integration with reversing starters such as Allen-Bradley 140M-RC2E, Eaton PKZM0, Siemens S00, and Schneider Electric GV2 featuring spring terminals. Its ultrasonic sealing of conductor ends and secure click mechanism ensure reliable and safe connections. Compatible with a variety of busbar sizes and types, this adapter is a versatile choice for your electrical distribution needs.
Key Benefits
- Ultrasonically sealed conductor ends for enhanced durability and safety.
- Click mechanism allows easy and secure attachment onto busbars.
- Compatible with spring-loaded terminals for efficient switching device connections.
- Suitable for busbars of various dimensions: 12, 15, 20, 25, 30 x 5, 10 mm and section busbars.
- Halogen-free construction supports environmentally responsible installations.
- Complies with multiple international approvals including UL 508, CSA, and DNV GL.
Technical Specifications
- Item number: 32440
- Description: busbar adapter 16 A
- Rated current: 12 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 90 x 200 x 63 mm
- Weight: 57.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: type number: EEC6025
- Approval: UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is this busbar adapter suitable for all types of busbars?
This adapter is compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 mm and section busbars, making it versatile for many applications.
Can it be used with spring-loaded terminals?
Yes, the busbar adapter is specifically designed for switching devices with spring-loaded terminals for secure and reliable connections.
Does the busbar adapter carry current?
As a mechanical adapter, it facilitates connection but does not itself carry current; it ensures proper conduction through the connected busbars and devices.
Is the product environmentally friendly?
Yes, the adapter is halogen-free, supporting environmentally responsible installations.
What approvals does this product have?
The busbar adapter holds multiple approvals including UL 508, CSA, UL, and DNV GL certifications, ensuring compliance with international safety standards.
| Manufacturer Part Number | 32440 |
|---|---|
| Barcode | 4021267324407 |
| Height | 200mm |
| Width | 90mm |
| Depth | 63mm |
| Alternative Product SKU | 32440000 |
| Manufacturer | Wohner |
| Packed Quantity | 2 |
