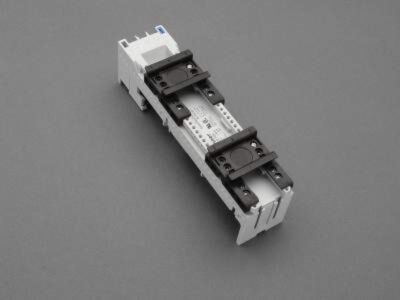

32436 Wohner busbar adapter 25 A
MPN: 32436
Alt. SKU: 32436000
Special Price
£22.21
£18.51
Regular Price
£27.77
Why Choose the Busbar Adapter 25 A (32436)?
The busbar adapter 25 A (part number 32436) is designed for reliable and flexible electrical connections within the EQUES 60Classic system. Featuring two adjustable mounting rails and screw terminals suitable for 6mm² cables from the rear, it accommodates various busbar sizes including 12, 15, 20, 25, 30 x 5, 10 and section busbars. This adapter is halogen free and carries multiple industry approvals, ensuring safety and compliance in demanding electrical installations.
Key Benefits
- Supports rated current of 25 A and rated voltage up to 600 V AC, suitable for a wide range of applications.
- Two adjustable mounting rails provide versatile installation options.
- Screw terminals from rear side facilitate easy and secure cable connections.
- Compatible with various busbar dimensions, enhancing system flexibility.
- Halogen-free construction promotes environmental safety and reduces toxic emissions in case of fire.
- Extensive approvals including UL 508, CSA, DNV GL, and compliance with UL feeder circuits >250V ensure trusted performance.
- Mechanical product that does not carry current itself but provides a robust and safe connection interface.
Technical Specifications
- Item number: 32436
- Description: busbar adapter 25 A
- Rated current: 25 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 45 x 200 x 63 mm
- Weight: 32.2 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EEC6025-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes are compatible with this adapter?
The busbar adapter supports busbars sized 12, 15, 20, 25, 30 x 5, 10 and section busbars, offering broad compatibility within the 60Classic system.
Is this adapter suitable for carrying current directly?
This is a mechanical adapter designed to provide a connection interface; it does not carry current itself but facilitates secure electrical connections.
What approvals does this product have?
The adapter holds multiple approvals including UL 508, CSA, UL, DNV GL, and is compliant with UL feeder circuits over 250V, ensuring safety and regulatory compliance.
Is the product environmentally friendly?
Yes, the busbar adapter is halogen free, reducing toxic emissions and environmental impact in the event of fire.
| Manufacturer Part Number | 32436 |
|---|---|
| Barcode | 4021267324360 |
| Height | 200mm |
| Width | 45mm |
| Depth | 63mm |
| Alternative Product SKU | 32436000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
