32433 Wohner busbar adapter 25 A
MPN: 32433
Alt. SKU: 32433000
Special Price
£27.44
£22.87
Regular Price
£34.30

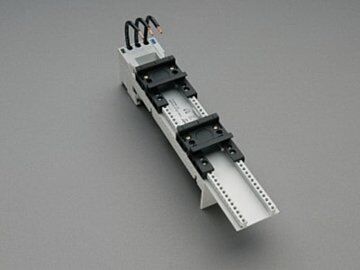

Why Choose the Busbar Adapter 25 A (32433)?
The busbar adapter 25 A (32433) is designed for reliable and efficient electrical connections within your busbar systems. Featuring a 3-pole configuration and two adjustable mounting rails, this adapter ensures a secure fit for various busbar sizes including 12, 15, 20, 25, 30 x 5, 10 mm sections. Its conductor ends are ultrasonically sealed, providing excellent durability and safety. The click mechanism facilitates easy and secure installation onto busbars, reducing installation time and ensuring a firm connection.
Key Benefits
- Supports a rated current of 25 A and voltage up to 600 V AC, suitable for a wide range of industrial applications.
- Compatible with multiple busbar sizes, offering flexibility in system design.
- Ultrasonically sealed conductor ends enhance connection reliability and longevity.
- Click mechanism allows quick and secure mounting onto busbars without additional tools.
- Halogen-free construction promotes environmental safety and compliance.
- Complies with multiple approvals including UL 508, CSA, and DNV GL, ensuring high safety and quality standards.
- Mechanical product that does not carry current itself but facilitates safe and efficient electrical connections.
Technical Specifications
- Item number: 32433
- Description: busbar adapter 25 A
- Rated current: 25 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 45 x 260 x 63 mm
- Weight: 35.7 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EEC6025-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes are compatible with this adapter?
The adapter supports busbars sized 12, 15, 20, 25, 30 x 5 mm and 10 mm sections.
Is the busbar adapter suitable for carrying current directly?
This is a mechanical adapter and does not carry current itself; it facilitates secure connections between busbars.
What approvals does the busbar adapter have?
It is approved under UL 508, CSA, UL, and DNV GL standards, including specific UL files for USA and Canada.
Is the product environmentally friendly?
Yes, the busbar adapter is halogen-free, supporting safer environmental practices.
How is the adapter installed?
The adapter features a click mechanism for easy and secure mounting onto busbars, along with two adjustable mounting rails.
| Manufacturer Part Number | 32433 |
|---|---|
| Barcode | 4021267324339 |
| Height | 260mm |
| Width | 45mm |
| Depth | 63mm |
| Alternative Product SKU | 32433000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
