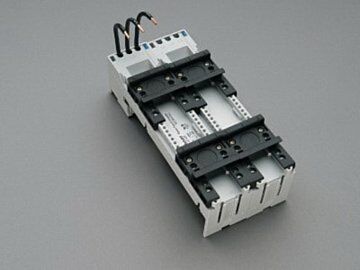

32432 Wohner busbar adapter 25 A

Why Choose the Busbar Adapter 25 A (32432)?

The Busbar Adapter 25 A (32432) is designed for reliable and efficient electrical connections within your busbar systems. Featuring two adjustable mounting rails and compatibility with various busbar sizes, this adapter ensures flexibility and ease of installation. Its conductor ends are ultrasonically sealed, providing enhanced durability and safety. The click mechanism allows for secure and simple attachment to busbars, making it an ideal choice for professional electrical setups.

Key Benefits

• Supports rated current of 25 A and rated voltage of 600 V AC for robust performance.
• Compatible with busbars of sizes 12, 15, 20, 25, 30 x 5, 10 mm and section busbars.
• Equipped with two adjustable mounting rails for versatile installation options.
• Conductor ends ultrasonically sealed to prevent corrosion and ensure long-term reliability.
• Click mechanism enables quick and secure mounting onto busbars.
• Halogen-free construction promotes environmental safety.
• Complies with multiple approvals including UL 508, CSA, and DNV GL for assured quality and safety standards.

Technical Specifications

• Item number: 32432
• Description: busbar adapter 25 A
• Rated current: 25 A
• Rated voltage AC: 600 V
• Rated frequency: 50 / 60 Hz
• Dimensions (W x H x D): 90 x 200 x 63 mm
• Weight: 57.1 kg/100
• Halogen free: Yes
• Approval: UL 508
• Approval: CSA , UL , DNV GL
• Approval: for UL feeder circuits >250V
• Approval: type number: EEC6025-L
• Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
• Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
• Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
• Approval: CCC approval: no certification required
