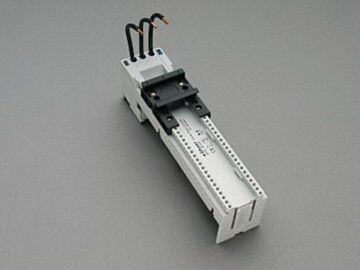

32430 Wohner busbar adapter 25 A
MPN: 32430
Alt. SKU: 32430000
Special Price
£21.46
£17.88
Regular Price
£26.82
Why Choose the Busbar Adapter 25 A (32430)?
The busbar adapter 25 A (32430) is designed for seamless integration with the EQUES 60Classic system, providing reliable and efficient connection solutions for busbars. Its adjustable mounting rail and ultrasonic sealing of conductor ends ensure secure and durable connections. The click mechanism allows for easy installation by simply pushing the adapter onto the busbar, saving time and effort during setup.
Key Benefits
- Supports rated current of 25 A and voltage up to 600 V AC, suitable for a wide range of industrial applications.
- Compatible with busbars of various sizes including 12, 15, 20, 25, 30 x 5, 10 mm and section busbars.
- Halogen-free construction enhances safety and environmental compliance.
- Robust approvals including UL 508, CSA, UL, and DNV GL ensure high quality and regulatory compliance.
- Mechanical product – does not carry current, ensuring safe and reliable busbar connections.
- Includes adjustable mounting rail for flexible installation options.
Technical Specifications
- Item number: 32430
- Description: busbar adapter 25 A
- Rated current: 25 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 45 x 200 x 63 mm
- Weight: 32.5 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EEC6025-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is the busbar adapter suitable for different busbar sizes?
Yes, it is compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 mm as well as section busbars.
Does this adapter carry electrical current?
No, the busbar adapter is a mechanical product and does not carry current itself. It facilitates secure connections between busbars.
What approvals does this product have?
The adapter holds multiple approvals including UL 508, CSA, UL, and DNV GL, ensuring compliance with industry standards.
Is the product halogen free?
Yes, the busbar adapter is halogen free, supporting safer and more environmentally friendly installations.
Where can I find technical documentation and CAD models?
Technical information, mounting instructions, and CAD models are available for download from the manufacturer's website.
| Manufacturer Part Number | 32430 |
|---|---|
| Barcode | 4021267324308 |
| Height | 200mm |
| Width | 45mm |
| Depth | 63mm |
| Alternative Product SKU | 32430000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
