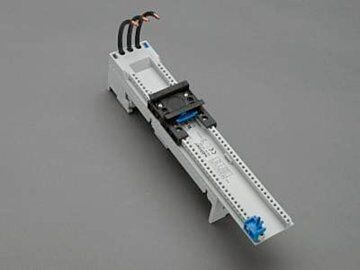

32428 Wohner busbar adapter 32 A
MPN: 32428
Alt. SKU: 32428000
Special Price
£37.79
£31.49
Regular Price
£47.24
Why Choose the Busbar Adapter 32 A (32428)?
The busbar adapter 32 A (32428) is designed for seamless integration with Schneider Electric reversing starters LUB12/32, providing a reliable and efficient connection solution. Its 3-pole configuration and compatibility with various busbar sizes make it a versatile choice for industrial electrical systems. The adapter features ultrasonically sealed conductor ends and a secure click mechanism for easy installation onto busbars, ensuring a stable and durable connection.
Key Benefits
- Compatible with multiple busbar dimensions: 12, 15, 20, 25, 30 x 5, 10 mm and section busbars.
- Ultrasonically sealed conductor ends for enhanced electrical contact and longevity.
- Secure click mechanism simplifies mounting and prevents accidental disconnection.
- Halogen-free construction supports environmentally responsible installations.
- Approved by major standards including UL 508, CSA, and DNV GL for assured safety and compliance.
- Mechanical adapter that does not carry current itself but facilitates reliable current transfer through connected components.
Technical Specifications
- Item number: 32428
- Description: busbar adapter 32 A
- Rated current: 32 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 45 x 260 x 63 mm
- Weight: 35.1 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EEC6025-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is the busbar adapter suitable for all types of busbars?
The adapter is compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 mm and section busbars, making it suitable for a wide range of applications.
Does the busbar adapter carry electrical current directly?
No, this mechanical adapter does not carry current itself but facilitates a secure connection between busbars and reversing starters.
What approvals does this product have?
The busbar adapter holds UL 508, CSA, and DNV GL approvals, among others, ensuring compliance with international safety standards.
Is the product environmentally friendly?
Yes, it is halogen-free, supporting safer and more environmentally responsible electrical installations.
| Manufacturer Part Number | 32428 |
|---|---|
| Barcode | 4021267324285 |
| Height | 260mm |
| Width | 45mm |
| Depth | 63mm |
| Alternative Product SKU | 32428000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
