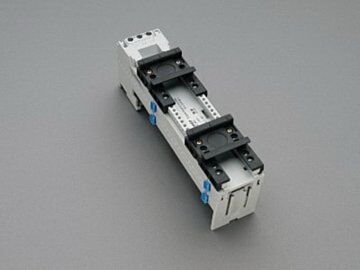

32421 Wohner busbar component support
MPN: 32421
Alt. SKU: 32421000
Special Price
£38.86
£32.38
Regular Price
£48.56
Why Choose the Busbar Component Support (32421)?
The busbar component support 32421 is designed to provide a reliable and flexible mounting solution for busbars in electrical installations. Featuring two adjustable mounting rails and a removable upper section, it accommodates a variety of busbar sizes and sections without carrying current itself. Its halogen-free construction ensures safety and environmental compliance, while CrossLink® Technology enhances system integration. Certified to multiple international standards including UL 508 and CSA, this component support guarantees quality and durability for your electrical systems.
Key Benefits
- Adjustable mounting rails for versatile installation options
- Compatible with busbars of various sizes: 12, 15, 20, 25, 30 x 5, 10 mm and section busbars
- Removable upper section simplifies maintenance and modifications
- Halogen-free material for enhanced safety and environmental responsibility
- Incorporates CrossLink® Technology for improved system performance
- Certified to UL 508, CSA, and DNV GL standards for assured quality
- Does not carry electrical current, ensuring safe mechanical support
Technical Specifications
- Item number: 32421
- Description: busbar component support
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 54 x 200 x 75 mm
- Weight: 38.8 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EMC6000-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
Does this component support carry electrical current?
No, the busbar component support 32421 is a mechanical support and does not carry electrical current.
What busbar sizes are compatible with this support?
It is compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 mm as well as section busbars.
Is the material halogen-free?
Yes, the product is made from halogen-free materials for enhanced safety.
What certifications does this product have?
The product is certified to UL 508, CSA, and DNV GL standards, among others.
| Manufacturer Part Number | 32421 |
|---|---|
| Barcode | 4021267324216 |
| Height | 200mm |
| Width | 54mm |
| Depth | 75mm |
| Alternative Product SKU | 32421000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
