32420 Wohner busbar component support
MPN: 32420
Alt. SKU: 32420000
Special Price
£33.43
£27.86
Regular Price
£41.80
Why Choose the Busbar Component Support (32420)?

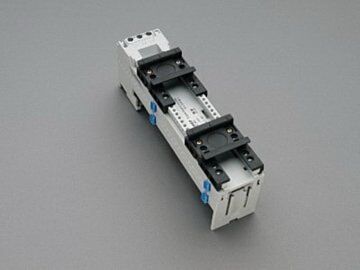

The busbar component support 32420 is designed to provide a robust and flexible mounting solution for various busbar sizes. Featuring two adjustable mounting rails and a removable upper section, it offers ease of installation and adaptability without carrying electrical current. Its halogen-free construction and compliance with multiple international approvals ensure safety and environmental responsibility in your electrical installations.
Key Benefits
- Compatible with busbars of sizes 12, 15, 20, 25, 30 x 5, 10 and section busbars.
- Two adjustable mounting rails for flexible positioning.
- Removable upper section allows easy access and modification.
- Constructed with CrossLink® Technology for enhanced durability.
- Halogen-free material promotes safer and environmentally friendly use.
- Does not carry electrical current, ensuring mechanical support only.
- Approved to UL 508, CSA, UL, and DNV GL standards for reliable performance.
- Suitable for UL feeder circuits over 250V.
Technical Specifications
- Item number: 32420
- Description: busbar component support
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 45 x 200 x 75 mm
- Weight: 34.9 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EMC6000-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
Does this busbar component support carry electrical current?
No, the busbar component support 32420 is a mechanical product designed solely for mounting and supporting busbars. It does not carry electrical current.
What busbar sizes are compatible with this support?
This support is compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 and section busbars.
Is the product halogen free?
Yes, the busbar component support is made from halogen-free materials.
What certifications does this product have?
It holds UL 508, CSA, UL, and DNV GL approvals and is suitable for UL feeder circuits over 250V.
Are there CAD models available for this product?
Yes, 3D PDF, 3D STP, and 2D DXF CAD models are available for download.
| Manufacturer Part Number | 32420 |
|---|---|
| Barcode | 4021267324209 |
| Height | 200mm |
| Width | 45mm |
| Depth | 75mm |
| Alternative Product SKU | 32420000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
