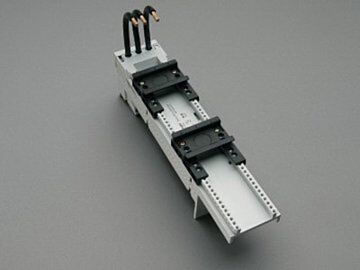

32416 Wohner busbar adapter 45 A
MPN: 32416
Alt. SKU: 32416000
Special Price
£56.42
£47.02
Regular Price
£70.54
Why Choose the Busbar Adapter 45 A (32416)?
The busbar adapter 45 A (part number 32416) is designed for reliable and efficient electrical connections within your system. Featuring a 3-pole design and two adjustable mounting rails, it offers flexibility and ease of installation. Its removable upper section and AWG 8 (10 mm²) leads ensure secure and adaptable connectivity. Compatible with various busbar sizes, this adapter incorporates CrossLink® Technology for enhanced performance. The conductor ends are ultrasonically sealed, and a click mechanism ensures a firm attachment to the busbar, providing peace of mind in demanding environments.
Key Benefits
- Supports rated current of 45 A and rated voltage of 600 V AC, suitable for a wide range of applications.
- 3-pole configuration with two adjustable mounting rails for versatile installation options.
- Removable upper section facilitates easy maintenance and wiring.
- Compatible with busbars of various dimensions (12, 15, 20, 25, 30 x 5, 10 mm) and section busbars.
- Incorporates CrossLink® Technology for enhanced electrical performance.
- Ultrasonically sealed conductor ends ensure secure and reliable connections.
- Click mechanism guarantees a secure fit onto the busbar, reducing installation errors.
- Halogen-free construction supports environmentally responsible installations.
- Complies with multiple international approvals including UL 508, CSA, and DNV GL.
Technical Specifications
- Item number: 32416
- Description: busbar adapter 45 A
- Rated current: 45 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 54 x 260 x 75 mm
- Weight: 56.7 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EMC6045-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is the busbar adapter suitable for all busbar sizes?
Yes, it is compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 mm as well as section busbars.
Does this adapter carry current?
Yes, the busbar adapter is designed to carry a rated current of 45 A.
What technology does this adapter use for connection security?
It uses CrossLink® Technology and ultrasonically sealed conductor ends, along with a click mechanism for secure attachment.
Is the product halogen free?
Yes, the busbar adapter is halogen free, supporting safer and more environmentally friendly installations.
What approvals does this product have?
It holds UL 508, CSA, UL, and DNV GL approvals, among others, ensuring compliance with international standards.
| Manufacturer Part Number | 32416 |
|---|---|
| Barcode | 4021267324162 |
| Height | 260mm |
| Width | 54mm |
| Depth | 75mm |
| Alternative Product SKU | 32416000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
