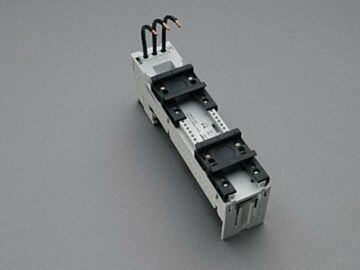

32401 Wohner busbar adapter 16 A
MPN: 32401
Alt. SKU: 32401000
Special Price
£38.53
£32.11
Regular Price
£48.16
Why Choose the Busbar Adapter 16 A (32401)?
The Busbar Adapter 16 A (32401) is designed for seamless integration with direct starters such as Allen-Bradley 140M-RC2E, Eaton PKZM0, Siemens S00, and Schneider Electric GV2 featuring spring terminals. Its robust construction and innovative CrossLink® Technology ensure reliable and secure connections. This adapter is halogen-free, supporting environmentally conscious installations, and is suitable for a variety of busbar sizes, enhancing its versatility in industrial electrical systems.
Key Benefits
- Compatible with multiple direct starter brands for flexible application.
- Features a removable upper section and AWG 12 (4 mm²) leads for easy installation and maintenance.
- Ultrasonically sealed conductor ends provide enhanced connection reliability.
- Click mechanism ensures secure attachment to busbars, preventing accidental disconnections.
- Halogen-free material supports safer and more environmentally friendly installations.
- Approved by UL, CSA, and DNV GL, meeting rigorous safety and performance standards.
- Designed for busbars of various dimensions, including 12, 15, 20, 25, 30 x 5, 10 mm sections.
- Mechanical product that does not carry current directly, ensuring safe operation within electrical systems.
Technical Specifications
- Item number: 32401
- Description: busbar adapter 16 A
- Rated current: 12 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 45 x 200 x 75 mm
- Weight: 42.7 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EMC6025-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What is the primary function of the busbar adapter 16 A (32401)?
The adapter facilitates connection between busbars and direct starters, ensuring secure and reliable electrical distribution.
Is this product suitable for all busbar sizes?
It is compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 mm and section busbars.
Does the busbar adapter carry current directly?
No, as a mechanical adapter, it does not carry current itself but ensures proper connection within the electrical system.
What approvals does this product have?
The product holds UL 508, CSA, UL, and DNV GL approvals and is suitable for UL feeder circuits above 250V.
Is the busbar adapter environmentally friendly?
Yes, it is made from halogen-free materials, supporting safer and more sustainable installations.
| Manufacturer Part Number | 32401 |
|---|---|
| Barcode | 4021267324018 |
| Height | 200mm |
| Width | 45mm |
| Depth | 75mm |
| Alternative Product SKU | 32401000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
