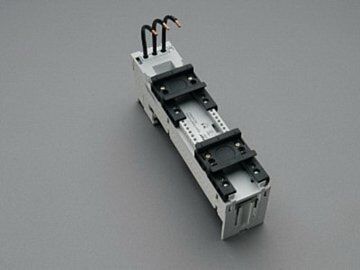

32400 Wohner busbar adapter 25 A
MPN: 32400
Alt. SKU: 32400000
Special Price
£37.12
£30.93
Regular Price
£46.39
Why Choose the Busbar Adapter 25 A (32400)?
The busbar adapter 25 A (32400) is designed for seamless integration with the EQUES 60Classic system, offering reliable and efficient connection solutions for busbars of various sizes. Featuring CrossLink® Technology and ultrasonically sealed conductor ends, this adapter ensures secure and durable connections. Its adjustable mounting rails and removable upper section provide flexibility and ease of installation, making it an ideal choice for professional electrical setups.
Key Benefits
- Supports rated current of 25 A and rated voltage of 600 V AC, suitable for a wide range of applications.
- Two adjustable mounting rails for versatile and secure installation.
- Removable upper section with leads AWG 12 (4 mm²) for convenient wiring.
- Compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 and section busbars.
- Incorporates CrossLink® Technology for enhanced connection stability.
- Ultrasonically sealed conductor ends and click mechanism ensure reliable and safe attachment to busbars.
- Halogen-free construction supports environmentally responsible installations.
- Certified to multiple international standards including UL 508, CSA, and DNV GL.
Technical Specifications
- Item number: 32400
- Description: busbar adapter 25 A
- Rated current: 25 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 45 x 200 x 75 mm
- Weight: 42.7 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EMC6025-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is the busbar adapter suitable for different busbar sizes?
Yes, it is compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 and section busbars, providing flexible application options.
Does the busbar adapter carry current directly?
As a mechanical adapter, it does not carry current itself but facilitates secure connections between busbars and conductors.
What certifications does this product have?
The adapter is certified under UL 508, CSA, and DNV GL standards and is approved for UL feeder circuits above 250 V.
Is the product environmentally friendly?
Yes, the busbar adapter is halogen-free, supporting eco-friendly electrical installations.
| Manufacturer Part Number | 32400 |
|---|---|
| Barcode | 4021267324001 |
| Height | 200mm |
| Width | 45mm |
| Depth | 75mm |
| Alternative Product SKU | 32400000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
