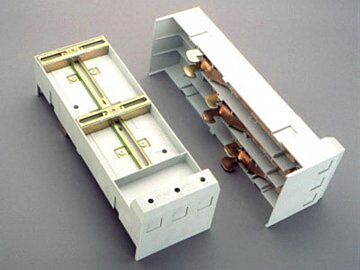

32216 Wohner busbar adapter 250 A
MPN: 32216
Alt. SKU: 32216000
Special Price
£57.38
£47.82
Regular Price
£71.74
Busbar Adapter 250 A (32216)
The busbar adapter 250 A (Part No.: 32216 000) from the EQUES 60Classic system is engineered for reliable and efficient electrical connections. Designed for busbars with dimensions 12, 15, 20, 25, 30 x 5, 10 and section busbars, it features terminals accommodating 35 - 120 mm² at the bottom and connects to the system from the bottom side. This adapter is halogen-free and complies with multiple international approvals, ensuring safety and quality in demanding industrial environments.
Why Choose the Busbar Adapter 250 A (32216)?
- Robust Compatibility: Supports a wide range of busbar sizes and types, making it versatile for various electrical installations.
- High Current Capacity: Rated for 250 A, suitable for medium power distribution applications.
- Certified Safety: Holds UL 508, CSA, and DNV GL approvals, ensuring compliance with stringent safety standards.
- Halogen-Free Construction: Environmentally friendly design reduces harmful emissions in case of fire.
- Precision Engineering: Dimensions of 110 x 320 x 51 mm provide a compact and efficient footprint.
Key Benefits
- Enables secure and stable electrical connections within the EQUES 60Classic system.
- Facilitates easy installation with bottom connection terminals for busbars sized 35 - 120 mm².
- Ensures long-term durability and performance under industrial conditions.
- Complies with international standards to guarantee reliability and safety.
- Mechanical product that does not carry current itself but provides a connection interface for busbars.
Technical Specifications
- Item number: 32216
- Description: busbar adapter 250 A
- Rated current: 250 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 110 x 320 x 51 mm
- Weight: 164.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: type number: 60250
- Approval: UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes are compatible with this adapter?
The adapter supports busbars sized 12, 15, 20, 25, 30 x 5, 10 and section busbars.
Is this adapter suitable for direct current (DC) applications?
The rated voltage for DC is not specified; it is primarily designed for AC systems up to 600 V.
Does the busbar adapter carry current itself?
No, this is a mechanical product that provides a connection interface but does not carry current itself.
What approvals does this product hold?
It holds UL 508, CSA, DNV GL approvals, and specific UL and CSA file certifications for USA and Canada.
Is the product environmentally friendly?
Yes, it is halogen-free, reducing harmful emissions in case of fire.
| Manufacturer Part Number | 32216 |
|---|---|
| Barcode | 4021267322168 |
| Height | 320mm |
| Width | 110mm |
| Depth | 51mm |
| Alternative Product SKU | 32216000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
