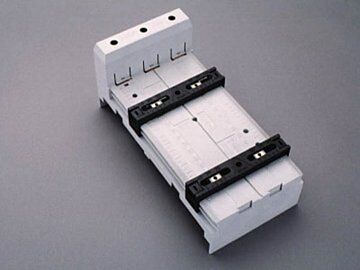

32214 Wohner busbar adapter 200 A
MPN: 32214
Alt. SKU: 32214000
Special Price
£51.86
£43.22
Regular Price
£64.82
Why Choose the Busbar Adapter 200 A (32214)?
The Busbar Adapter 200 A (32214) is designed for reliable and efficient electrical connections within your system. Compatible with the EQUES 60Classic system, it supports a rated current of 200 A and a rated voltage of 600 V AC, making it ideal for various industrial applications. Its halogen-free construction ensures safety and environmental compliance. With multiple approvals including UL 508, CSA, and DNV GL, this adapter guarantees quality and adherence to international standards.
Key Benefits
- Supports terminals from 6 to 70 mm² at the top for versatile connectivity.
- Compact dimensions (108 x 222 x 39 mm) for easy integration into existing setups.
- Compatible with busbars of various sizes: 12, 15, 20, 25, 30 x 5, 10 mm and section busbars.
- Halogen-free material enhances safety and environmental friendliness.
- Multiple international approvals ensure compliance and reliability.
- Mechanical adapter that does not carry current itself but facilitates secure busbar connections.
Technical Specifications
- Item number: 32214
- Description: busbar adapter 200 A
- Rated current: 200 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 108 x 222 x 39 mm
- Weight: 84.2 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: type number: 60200
- Approval: UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes are compatible with this adapter?
The adapter supports busbars sized 12, 15, 20, 25, 30 x 5, 10 mm as well as section busbars, providing flexibility for various system configurations.
Does the busbar adapter carry current directly?
No, this is a mechanical adapter designed to facilitate connections between busbars. It does not carry current itself but ensures secure and stable electrical connections.
Is this product suitable for use in halogen-sensitive environments?
Yes, the busbar adapter is made from halogen-free materials, making it suitable for environments where halogen-free components are required.
What certifications does this busbar adapter have?
It holds multiple certifications including UL 508, CSA, and DNV GL approvals, ensuring compliance with international safety and quality standards.
| Manufacturer Part Number | 32214 |
|---|---|
| Barcode | 4021267322144 |
| Height | 222mm |
| Width | 108mm |
| Depth | 39mm |
| Alternative Product SKU | 32214000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
