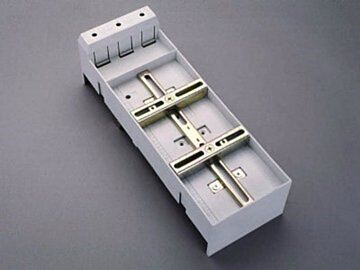

32168 Wohner busbar adapter 250 A
MPN: 32168
Alt. SKU: 32168000
Special Price
£56.78
£47.32
Regular Price
£70.98
Why Choose the Busbar Adapter 250 A (32168)?
The busbar adapter 250 A (32168) is designed for reliable and efficient electrical system connections within the 60Classic system. It supports terminals from 35 to 120 mm² at the top and is compatible with various busbar sizes including 12, 15, 20, 25, 30 x 5, 10 mm and section busbars. This adapter features movable fastening rails with M4 slide nuts, ensuring safe and secure mounting of switching devices. Its halogen-free construction supports environmentally conscious installations, while multiple international approvals guarantee compliance with stringent safety standards.
Key Benefits
- Supports a rated current of 250 A and rated voltage of 600 V AC, suitable for a wide range of industrial applications.
- Compatible with multiple busbar sizes and terminal cross-sections for versatile system integration.
- Movable fastening rails with M4 slide nuts provide secure and flexible mounting options.
- Halogen-free material enhances safety and environmental friendliness.
- Certified with UL 508, CSA, UL, and DNV GL approvals, ensuring high safety and quality standards.
- Compact dimensions (110 x 320 x 101 mm) and manageable weight facilitate easy installation.
Technical Specifications
- Item number: 32168
- Description: busbar adapter 250 A
- Rated current: 250 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 110 x 320 x 101 mm
- Weight: 160.4 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: type number: 60250
- Approval: UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What is the primary function of the busbar adapter 250 A (32168)?
This busbar adapter facilitates the connection of busbars within electrical distribution systems, ensuring secure and reliable electrical pathways.
Is the busbar adapter suitable for carrying current directly?
As a mechanical adapter, it does not carry current itself but provides the physical connection interface for busbars and switching devices.
Which busbar sizes are compatible with this adapter?
The adapter supports busbars sized 12, 15, 20, 25, 30 x 5, 10 mm as well as section busbars.
Are there any environmental considerations with this product?
Yes, the busbar adapter is halogen-free, making it a safer and more environmentally friendly choice.
What certifications does this product hold?
It is approved under UL 508, CSA, UL, and DNV GL standards, ensuring compliance with international safety and quality requirements.
| Manufacturer Part Number | 32168 |
|---|---|
| Barcode | 4021267321680 |
| Height | 320mm |
| Width | 110mm |
| Depth | 101mm |
| Alternative Product SKU | 32168000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
