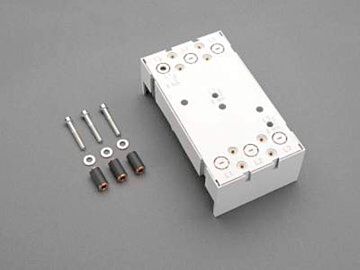

32140 Wohner busbar adapter 250 A, 3-pole
MPN: 32140
Alt. SKU: 32140000
Special Price
£82.21
£68.51
Regular Price
£102.77
Why Choose the Busbar Adapter 250 A, 3-pole (32140)?
The busbar adapter 250 A, 3-pole (32140) is designed for reliable and efficient electrical system connections. Compatible with Eaton NZM2-XKR4O and NZM2-XKR4U circuit breakers, it supports a wide range of busbar sizes, ensuring versatile application in industrial electrical installations. Its halogen-free construction and multiple international approvals make it a safe and environmentally responsible choice.
Key Benefits
- Supports busbars of various dimensions: 12, 15, 20, 25, 30 x 5, 10 mm and section busbars.
- Rated for 250 A current and up to 600 V AC voltage, suitable for demanding electrical systems.
- Compatible with Eaton NZM2-XKR4O and NZM2-XKR4U breakers for seamless integration.
- Halogen-free material enhances safety and environmental compliance.
- Multiple approvals including UL 508, CSA, and DNV GL ensure compliance with international standards.
- Designed for connection to the system from top or bottom, offering installation flexibility.
- Mechanical component only – does not carry current itself but facilitates secure electrical connections.
Technical Specifications
- Item number: 32140
- Description: busbar adapter 250 A, 3-pole
- Rated current: 250 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 105 x 190 x 35 mm
- Weight: 90.1 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: 60250.1-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes are compatible with this adapter?
This busbar adapter supports busbars sized 12, 15, 20, 25, 30 mm width with 5 or 10 mm thickness, as well as section busbars.
Is this adapter suitable for direct current (DC) applications?
The adapter is rated for alternating current (AC) up to 600 V. DC voltage rating is not specified, so it is recommended to consult technical support for DC applications.
Does the busbar adapter carry current itself?
No, this is a mechanical adapter designed to facilitate connections between busbars and circuit breakers. It does not carry current itself.
What approvals does this product have?
The busbar adapter holds multiple approvals including UL 508, CSA, UL for feeder circuits over 250 V, and DNV GL certification.
Is the product environmentally friendly?
Yes, the adapter is halogen-free, supporting safer environmental and health standards.
| Manufacturer Part Number | 32140 |
|---|---|
| Barcode | 4021267321406 |
| Height | 190mm |
| Width | 105mm |
| Depth | 35mm |
| Alternative Product SKU | 32140000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
