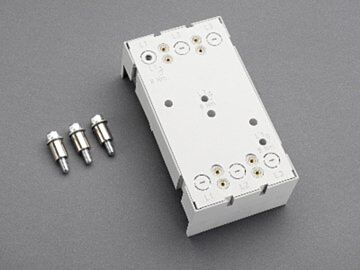

32137 Wohner busbar adapter 250 A, 3-pole
MPN: 32137
Alt. SKU: 32137000
Special Price
£86.28
£71.90
Regular Price
£107.86
Why Choose the Busbar Adapter 250 A, 3-pole (32137)?
The busbar adapter 250 A, 3-pole (32137) is designed for seamless integration into Eaton JG systems, providing reliable connection options either from the top or bottom. Its compatibility with various busbar sizes and sections ensures versatile application in industrial electrical installations. Manufactured with halogen-free materials, it supports safer and more environmentally friendly operations. Certified to stringent UL and CSA standards, this adapter guarantees high safety and performance levels for demanding electrical environments.
Key Benefits
- Supports rated current up to 250 A and voltage up to 600 V AC, suitable for a wide range of applications.
- Compatible with multiple busbar sizes including 12, 15, 20, 25, 30 x 5, 10 mm and section busbars, enhancing flexibility.
- Halogen-free construction promotes safer use and environmental responsibility.
- Certified by UL 508, CSA, and DNV GL, ensuring compliance with international safety standards.
- Designed for use in UL feeder circuits over 250 V, broadening its application scope.
- Mechanical product that does not carry current itself but facilitates secure and efficient electrical connections.
Technical Specifications
- Item number: 32137
- Description: busbar adapter 250 A, 3-pole
- Rated current: 250 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 105 x 190 x 35 mm
- Weight: 90.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: 60250.1-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes are compatible with this adapter?
The busbar adapter supports busbars sized 12, 15, 20, 25, 30 mm with thicknesses of 5 and 10 mm, as well as section busbars.
Is this adapter suitable for carrying current directly?
No, this is a mechanical adapter designed to facilitate connections; it does not carry current itself.
What certifications does this product hold?
It is certified under UL 508, CSA, and DNV GL standards and is approved for UL feeder circuits above 250 V.
Is the product environmentally friendly?
Yes, it is manufactured using halogen-free materials to support safer and more sustainable installations.
| Manufacturer Part Number | 32137 |
|---|---|
| Barcode | 4021267321376 |
| Height | 190mm |
| Width | 105mm |
| Depth | 35mm |
| Alternative Product SKU | 32137000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
