32030 Wohner busbar adapter 125 A, 3-pole
MPN: 32030
Alt. SKU: 32030000A
Special Price
£123.71
£103.09
Regular Price
£154.63

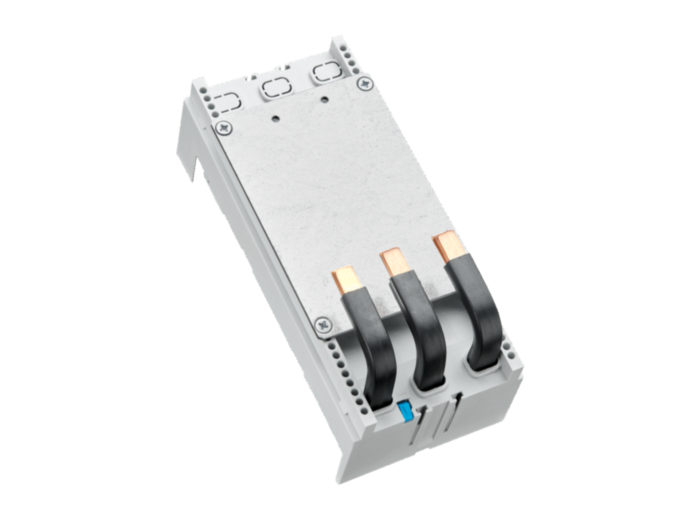

Busbar Adapter 125 A, 3-pole (32030)
The busbar adapter 125 A, 3-pole (Part No.: 32030 000A) is designed for seamless connection to the system bottom, compatible with Siemens 3VA10, 3VA11, 3VA50, 3VA51, HGG, LGG, and NGG circuit breakers. It supports busbars sized 12, 15, 20, 25, 30 x 5, 10 mm and section busbars within the 60Classic system.
Why Choose the Busbar Adapter 125 A, 3-pole?
- Reliable connection solution tailored for Siemens circuit breakers ensuring system compatibility.
- Robust construction designed to fit a variety of busbar sizes and section busbars.
- Complies with multiple international approvals including UL 508 and CSA, guaranteeing safety and quality.
- Facilitates efficient system integration within the 60Classic system range.
- Supports high short-circuit current ratings, enhancing system protection.
Key Benefits
- Rated for 125 A current and up to 600 V AC voltage, suitable for demanding electrical applications.
- Compact dimensions (90 x 200 x 26 mm) allow for space-saving installation.
- Halogen-free design is not applicable; ensure appropriate environmental considerations.
- Mechanical product that does not carry current itself but provides a secure and stable connection interface.
- Extensive technical documentation and CAD models available for precise planning and installation.
Technical Specifications
- Item number: 32030
- Description: busbar adapter 125 A, 3-pole
- Rated current: 125 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 90 x 200 x 26 mm
- Weight: 81.0 kg/100
- Halogen free: No
- Approval: UL 508
- Approval: CSA , UL
- Approval: for UL feeder circuits >250V
- Approval: type number: EPC60160-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What is the primary function of this busbar adapter?
This busbar adapter provides a secure mechanical connection interface between busbars and Siemens circuit breakers within the 60Classic system. It does not carry current itself but ensures reliable system integration.
Which busbar sizes are compatible with this adapter?
The adapter supports busbars sized 12, 15, 20, 25, 30 mm width with 5 or 10 mm thickness, as well as section busbars.
Is the busbar adapter suitable for high short-circuit current ratings?
Yes, it supports short-circuit current ratings up to 150 kA depending on the connected circuit breaker model, ensuring enhanced system protection.
Does this product contain halogen?
No, this busbar adapter is not halogen-free. Please consider this in your environmental and safety planning.
Are technical documents and CAD models available?
Yes, comprehensive technical information, mounting instructions, and CAD models in various formats are available for download to assist with installation and planning.
| Manufacturer Part Number | 32030 |
|---|---|
| Barcode | 4021267320300 |
| Height | 200mm |
| Width | 90mm |
| Depth | 26mm |
| Alternative Product SKU | 32030000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Busbar distance | 60mm |
| Rated current In | 160A |
| Min. busbar thickness | 5mm |
| Max. busbar thickness | 10mm |
| Width of the adaptor | 90mm |
