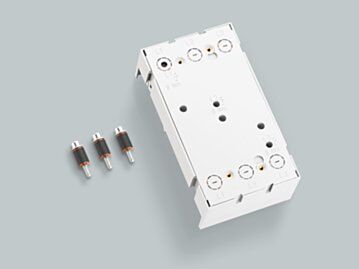

32023 Wohner busbar adapter 250 A, 3-pole
MPN: 32023
Alt. SKU: 32023000A
Special Price
£94.79
£78.99
Regular Price
£118.48
Why Choose the Busbar Adapter 250 A, 3-pole (32023)?
The busbar adapter 250 A, 3-pole (32023) is designed to provide a reliable and efficient connection solution for electrical busbar systems. Compatible with ABB Tmax XT4 and Allen-Bradley 140G-J circuit breakers, this adapter supports various busbar sizes and ensures secure connections either from the top or bottom of the system. Its halogen-free construction and multiple international approvals make it a safe and environmentally responsible choice for industrial electrical installations.
Key Benefits
- Supports rated current up to 250 A and voltage up to 600 V AC, suitable for demanding applications.
- Compatible with multiple busbar sizes including 12, 15, 20, 25, 30 x 5, 10 mm and section busbars.
- Flexible connection options allow installation from either the top or bottom of the system.
- Halogen-free design enhances safety and environmental compliance.
- Comprehensive approvals including UL 508, CSA, and DNV GL ensure compliance with international standards.
- Mechanical product that does not carry current itself but facilitates secure electrical connections.
- Compact dimensions (105 x 190 x 35 mm) allow easy integration into existing systems.
Technical Specifications
- Item number: 32023
- Description: busbar adapter 250 A, 3-pole
- Rated current: 250 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 105 x 190 x 35 mm
- Weight: 122.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: 60250.1-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes are compatible with this adapter?
The busbar adapter supports busbars sized 12, 15, 20, 25, 30 x 5 mm and 10 mm, as well as section busbars.
Can the adapter be connected from both the top and bottom of the system?
Yes, the adapter allows connection to the system from either the top or bottom, providing installation flexibility.
Is this adapter suitable for use with ABB Tmax XT4 circuit breakers?
Yes, it is compatible with ABB Tmax XT4 and Allen-Bradley 140G-J circuit breakers, provided they are equipped with box terminals.
Does the busbar adapter carry electrical current?
No, as a mechanical component, the busbar adapter itself does not carry current but facilitates secure connections between busbars and circuit breakers.
Is the product environmentally friendly?
Yes, the adapter is halogen-free, supporting safer and more environmentally responsible installations.
| Manufacturer Part Number | 32023 |
|---|---|
| Barcode | 4021267320232 |
| Height | 190mm |
| Width | 105mm |
| Depth | 35mm |
| Alternative Product SKU | 32023000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Busbar distance | 60mm |
| Rated current In | 250A |
| Min. busbar thickness | 5mm |
| Max. busbar thickness | 10mm |
| Width of the adaptor | 105mm |
