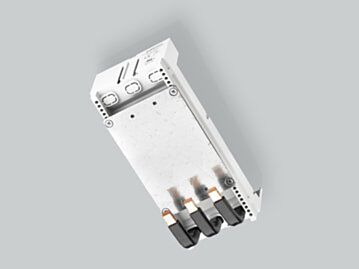

32020 Wohner busbar adapter 160 A, 3-pole
MPN: 32020
Alt. SKU: 32020000A
Special Price
£115.24
£96.03
Regular Price
£144.05
Why Choose the Busbar Adapter 160 A, 3-pole (32020)?
The busbar adapter 160 A, 3-pole (32020) is designed for seamless integration with ABB Tmax T1, XT1, XT2, and Allen-Bradley 140G-G, 140G-H systems. Its robust construction and compatibility with multiple busbar sizes ensure reliable and efficient connection to the system bottom. This adapter supports busbars ranging from 12 to 30 mm in width and 5 to 10 mm in thickness, making it a versatile choice for various electrical installations.
Key Benefits
- Supports a rated current of 160 A and rated voltage of 600 V AC, suitable for demanding electrical environments.
- Compatible with multiple busbar sizes and system types, enhancing flexibility in installation.
- Certified to UL 508 and CSA standards, ensuring compliance with North American safety requirements.
- Designed for use with UL feeder circuits above 250 V, providing added safety and reliability.
- Compact dimensions of 90 x 200 x 26 mm facilitate easy integration into existing systems.
- Mechanical product that does not carry current, ensuring safe handling and installation.
Technical Specifications
- Item number: 32020
- Description: busbar adapter 160 A, 3-pole
- Rated current: 160 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 90 x 200 x 26 mm
- Weight: 81.0 kg/100
- Halogen free: No
- Approval: UL 508
- Approval: CSA , UL
- Approval: for UL feeder circuits >250V
- Approval: type number: EPC60160
- Approval: UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is the busbar adapter suitable for all busbar sizes?
It is compatible with busbars sized 12, 15, 20, 25, 30 mm width and 5 or 10 mm thickness, as well as section busbars.
Can this adapter carry electrical current?
No, this is a mechanical adapter and does not carry current itself; it facilitates connection between busbars and system components.
What approvals does this product have?
The adapter holds UL 508, CSA, and UL feeder circuit approvals for voltages above 250 V, ensuring compliance with safety standards.
Is the product halogen free?
No, this product is not halogen free.
Where can I find technical documentation?
Technical information, mounting instructions, CAD models, and declarations of conformity are available via the provided download links.
| Manufacturer Part Number | 32020 |
|---|---|
| Barcode | 4021267320201 |
| Height | 200mm |
| Width | 90mm |
| Depth | 26mm |
| Alternative Product SKU | 32020000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Busbar distance | 60mm |
| Rated current In | 160A |
| Min. busbar thickness | 5mm |
| Max. busbar thickness | 10mm |
| Width of the adaptor | 90mm |
