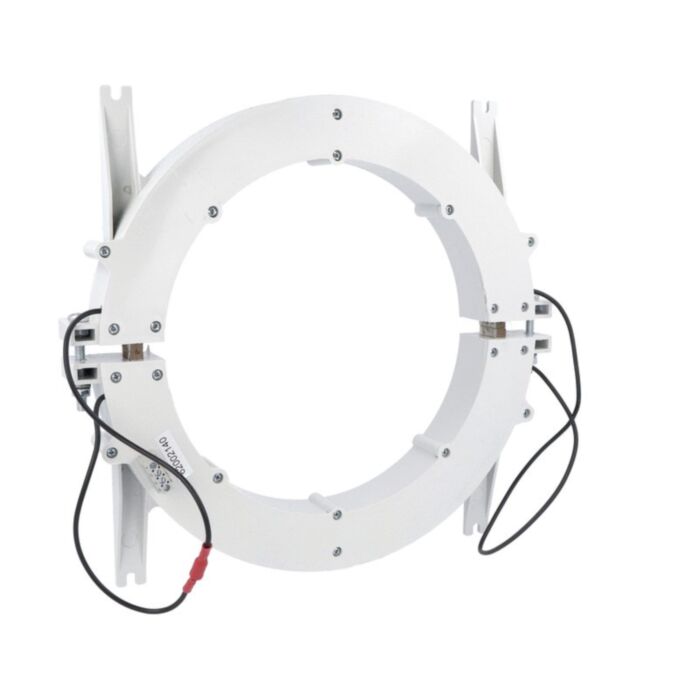

31RTA210 - OPENABLE TOROIDAL CURR TRANSFORMER 210

Why Choose the 31RTA210?

The Lovato 31RTA210 is a toroidal current transformer designed for residual current applications where a wide aperture is essential. With a 210 mm (8.27 in) inner diameter and a Type A residual operation characteristic, it supports detection of AC and pulsating DC leakage. Built in accordance with IEC/EN 60947-2, this robust toroidal sensor enables straightforward installation around large cables or busbars in new builds and retrofit panels.

Engineered by Lovato and certified for Sustainability, this 210 mm toroidal current transformer provides reliable performance for residual monitoring systems in industrial switchboards, control panels and distribution boards. Clear metric and imperial dimensions simplify design specification, while compliance with IEC/EN 60947-2 aids approvals. Choose it when you need ample clearance for multi-conductor feeds and dependable Type A behaviour in demanding electrical installations.

Key Benefits

• 210 mm (8.27 in) aperture simplifies routing of large cables and busbars.
• Type A residual characteristic detects AC and pulsating DC leakage currents.
• Built to IEC/EN 60947-2 for recognised safety and performance compliance.
• Toroidal design delivers consistent residual current sensing around conductors.
• Clear metric and imperial sizing eases specification and panel design.
• Lovato manufacture offers proven industrial quality and reliability.
• Sustainability certification supports environmentally responsible procurement.

Technical Specification

• Type of product: Toroidal current transformers
• Residual operation characteristic: Type A
• Toroidal transformer: Diam. 210 mm/8.27"

What’s Included

• Toroidal current transformer, 210 mm (8.27 in) aperture
• Basic installation and safety instructions
• Manufacturer datasheet (downloadable)
• Protective packaging

Applications

• Residual current and earth fault monitoring
• Industrial switchboards and distribution boards
• Control panels and OEM assemblies
• Retrofit upgrades where large cable clearance is required

Safety note: Install and commission only by qualified personnel. Always isolate and lock out power before fitting the toroid around conductors, and verify compliance with relevant standards and site procedures.
