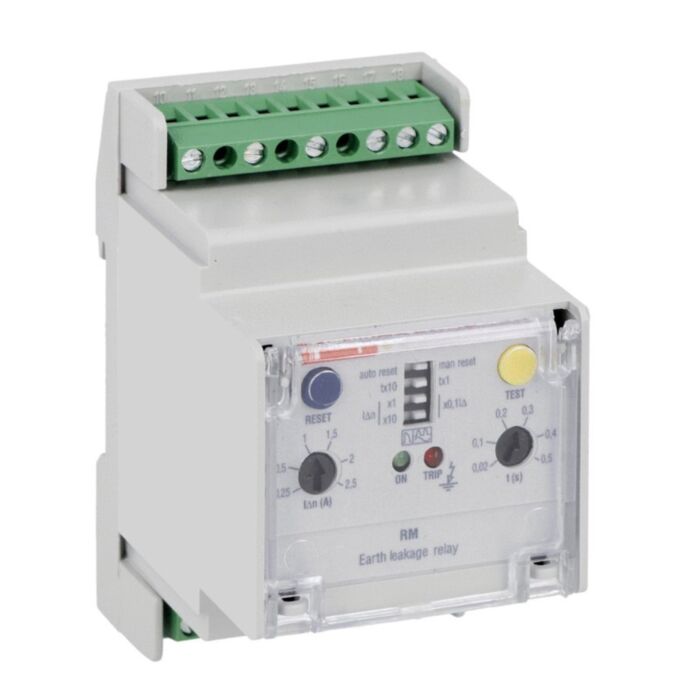

31RM415 - MODULAR EARTH LEAKAGE RELAY RM 110-415VA

Why Choose the 31RM415?

Lovato’s 31RM415 earth leakage relay delivers dependable Type A residual protection in modular control panels. Designed for 35 mm DIN (IEC/EN60715) rail mounting, it works with an external toroidal transformer and provides a single operating threshold for straightforward setup. A wide rated supply range of 110…125VAC/DC and 220…240/380…415VAC makes integration simple across mixed-voltage installations.

Built to last, the RM-series device offers a mechanical life of 50,000,000 cycles and operates from -10 to +60 °C. With a maximum terminal tightening torque of 0.5 Nm and compliance to IEC/EN 60947-2, it supports robust, standards-based protection. At just 190 g, it’s a practical choice for space-limited panels and OEM assemblies.

Key Benefits

• Type A residual characteristic for dependable earth fault protection.
• Modular 35 mm DIN rail mounting speeds tidy panel installation.
• External toroidal transformer interface for flexible sensor placement.
• Wide multi-voltage supply compatibility: 110…125VAC/DC; 220…240/380…415VAC.
• Single operating threshold simplifies configuration and maintenance.
• High mechanical life rating of 50,000,000 cycles enhances reliability.
• Conforms to IEC/EN 60947-2 for standards-based safety.

Technical Specification

• Product type designation: RM
• Terminal tightening torque (max): 0.5 Nm
• Mechanical life: 50000000 cycles
• Operating temperature: -10 to +60 °C
• Storage temperature: -20 to +80 °C
• Weight: 190 g

What’s Included

• Lovato 31RM415 earth leakage relay unit
• Installation leaflet
• Warranty information

Applications

• Modular DIN rail panels requiring earth leakage protection
• Installations using an external toroidal transformer
• Type A residual protection in control and distribution circuits
• Multi-voltage systems (110…125VAC/DC; 220…240/380…415VAC)

Safety note: Only qualified personnel should install and commission this device. Isolate power before work and use an appropriate external toroidal transformer, following IEC/EN 60947-2 and the manufacturer’s instructions.
