31L48TPS240 - TIME RELAY L48TPS 24-240VAC MULTIFUNCTIO

Why Choose the 31L48TPS240?

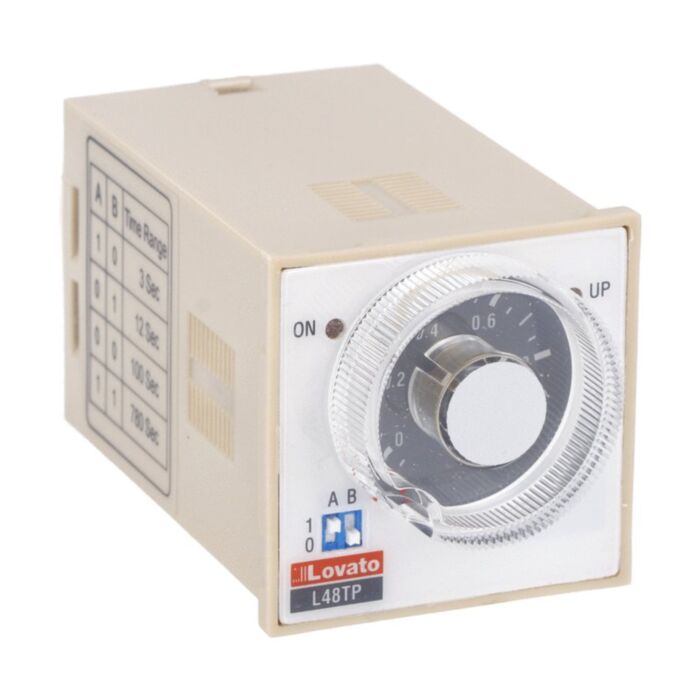

The Lovato L48TP on-delay time relay, SKU 31L48TPS240, delivers reliable timing control in a compact 48x48mm form factor. Designed for plug-in or flush mounting, it supports multivoltage operation at 24VAC/DC, 110VAC and 220...240VAC. Straightforward setup via dip-switches and a front knob streamlines commissioning, making it ideal for control panels where consistent on-delay performance and practical, panel-friendly installation are essential.

Built to international standards IEC/EN 61812-1, UL508 and CSA C22.2 n°14, this multiscale relay offers durability with a mechanical life of 30,000,000 cycles and an Ith (IEC) of 5 A. It operates from -10 to +60 °C, stores from -30 to +80 °C, and weighs 124 g, supporting dependable, compliance-ready timing in demanding industrial environments.

Key Benefits

• Multivoltage supply: 24VAC/DC, 110VAC, 220...240VAC for flexible installation.
• Compact 48x48mm housing suits plug-in or flush mounting.
• On-delay function ensures predictable start-up sequencing.
• Simple programming via dip-switches and front knob.
• Wide operating temperature range from -10 to +60 °C.
• High mechanical life, rated at 30,000,000 cycles.
• Conforms to IEC/EN 61812-1, UL508 and CSA C22.2 n°14.
• Ith (IEC) 5 A supports robust control circuits.

Technical Specification

• Product type designation: L48TP
• Ith (IEC): 5 A
• Mechanical life: 30000000 cycles
• Operating temperature: -10 to +60 °C
• Storage temperature: -30 to +80 °C
• Weight: 124 g

What’s Included

• Lovato L48TP time relay unit (SKU 31L48TPS240)
• Quick start and safety instructions
• Downloadable data sheet

Applications

• Delay-on energisation for machinery and process control panels.
• Sequencing start-up of motors, pumps, and conveyors.
• Lighting and HVAC control requiring reliable on-delay timing.
• Sites with mixed 24VAC/DC, 110VAC, 220...240VAC supplies.
• Space-limited installations using 48x48mm plug-in or flush mounting.

Safety note: Install and commission only by qualified personnel. Isolate power before wiring or adjustment, and observe the specified voltages, temperature limits and standards for safe operation.
