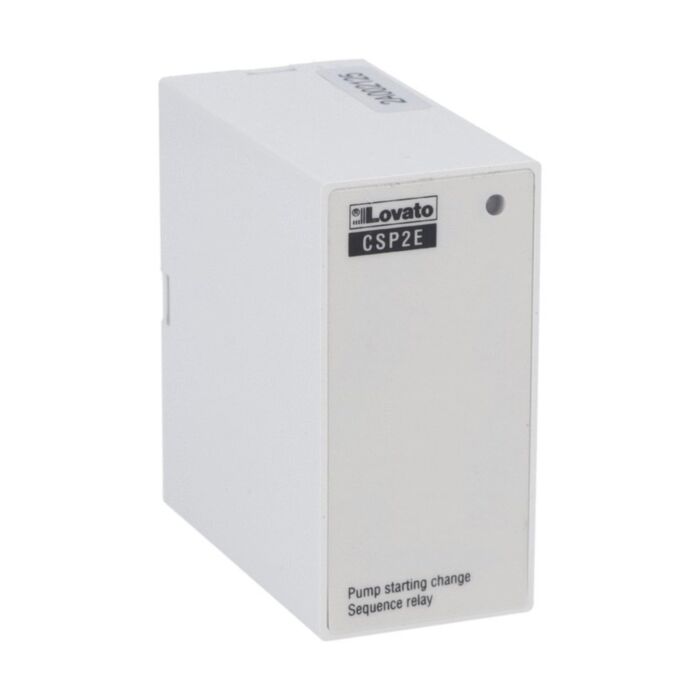

31CSP2E24 - SEQUENCE RELAY CSP2E 24VAC

Why Choose the 31CSP2E24?

The Lovato 31CSP2E24 is a start-up priority change relay designed for reliable duty/standby management. This plug-in version features two relay outputs and operates from a 24VAC supply for straightforward integration. Housed in an 11-pin socket format (S11), it enables the possible starting of a stand-by motor to maintain continuity. Built on the CSP2E platform, it delivers robust performance in industrial control panels where automated changeover and sequencing are essential.

Engineered for harsh environments, the 31CSP2E24 withstands impulse voltages up to 4 kV and provides an Ith of 5 A to align with IEC/EN 60255-5. It operates from -20 to +60 °C with storage from -30 to +80 °C, and weighs just 150 g for compact installations. With its 11-pin plug-in housing, maintenance and replacement are fast, supporting minimal downtime and dependable service.

Key Benefits

• Start-up priority logic enables possible starting of a stand-by motor.
• Two relay outputs provide flexible control and signalling options.
• 24VAC rated supply simplifies integration with existing AC control circuits.
• 11-pin plug-in housing (socket S11) speeds installation and replacement.
• Withstands 4 kV impulse voltage for enhanced insulation coordination.
• Operates reliably from -20 to +60 °C in varied environments.
• Ith 5 A rating supports robust control applications.
• Conforms to IEC/EN 60255-5 for assured performance and safety.

Technical Specification

• Product type designation: CSP2E
• Ith (IEC): 5 A
• Rated impulse withstand voltage Uimp: 4 kV
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C
• Weight: 150 g

What’s Included

• Lovato 31CSP2E24 start-up priority change relay (plug-in, 11-pin)
• Manufacturer documentation/datasheet
• Protective packaging for transit

Applications

• Duty/standby motor changeover and redundancy control
• Alternating pump management in process and utilities
• HVAC fans and blowers requiring automatic priority change
• Control panels using 24VAC and 11-pin plug-in relays
• General industrial sequencing and changeover tasks

Safety note: Installation and commissioning should be performed by qualified personnel. Isolate the 24VAC supply before wiring, observe the specified temperature limits and insulation requirements, and follow applicable standards and manufacturer documentation.
