31CSP2E230 - SEQUENCE RELAY CSP2E 230VAC
MPN: 31CSP2E230
Special Price
£173.51
£144.59
Regular Price
£204.13
Why Choose the 31CSP2E230?

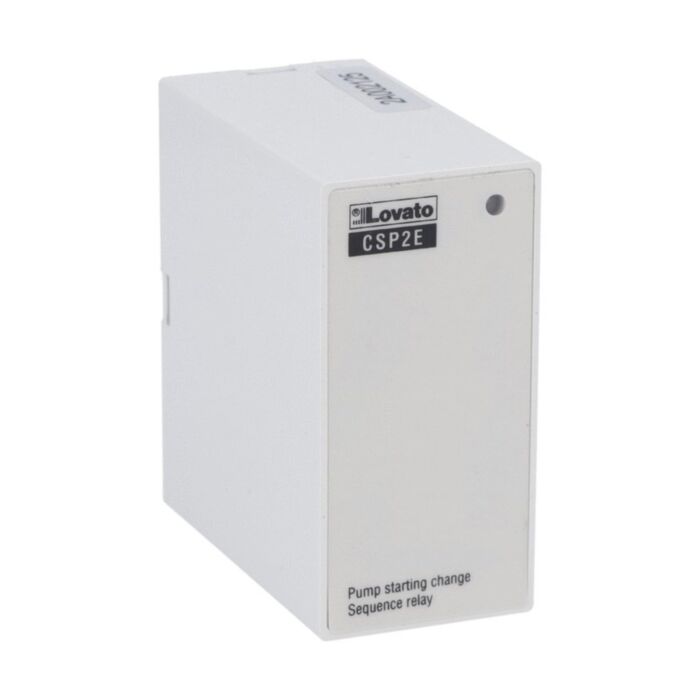

The Lovato 31CSP2E230 is a start-up priority change relay designed to manage main/standby motor sequences with assured continuity. This plug-in CSP2E unit provides two relay outputs and operates from a 230-240VAC supply, fitting an 11-pin socket S11 for quick changeover. Built for dependable automation in control panels, it streamlines priority selection and enables starting of a stand-by motor when required.
Engineered to IEC/EN 60255-5, the relay offers a rated impulse withstand of 4 kV and an Ith of 5 A for robust performance. With an operating temperature range of -20 to +60 °C and a compact 11-pin plug-in housing, it installs rapidly and supports reliable service in demanding environments where uptime and orderly motor changeover are critical.
Key Benefits
- Priority change function for main and standby motor management.
- Two relay outputs enable flexible control and signalling.
- 230-240VAC supply suits standard AC control systems.
- 11-pin plug-in housing (socket S11) for fast swap-out.
- 4 kV impulse withstand for enhanced surge immunity.
- Operates from -20 to +60 °C in industrial settings.
- Conforms to IEC/EN 60255-5 for protection performance.
- Ith 5 A for typical control circuit loads.
Technical Specification
- Product type designation: CSP2E
- Ith (IEC): 5 A
- Rated impulse withstand voltage Uimp: 4 kV
- Operating temperature: -20 to +60 °C
- Storage temperature: -30 to +80 °C
- Weight: 150 g
What’s Included
- Lovato CSP2E start-up priority change relay (SKU 31CSP2E230)
- Installation and safety instructions
- Protective packaging for transit
Applications
- Automated switching between primary and standby motors
- Duty/standby pump, fan or compressor control
- Industrial process control panels requiring priority changeover
- Enhancing uptime in critical equipment and utilities
Frequently Asked Questions
What supply voltage does the 31CSP2E230 require?
It operates from a 230-240VAC supply.
How many relay outputs are available?
The device provides two relay outputs.
How is this relay installed?
It fits an 11-pin plug-in housing using socket S11.
What standards and electrical ratings does it meet?
It conforms to IEC/EN 60255-5, with Uimp 4 kV and Ith 5 A.
What is the operating temperature range?
The specified operating range is -20 to +60 °C.
Safety note: Install and commission only by qualified personnel. Isolate power before wiring, use the correct 11-pin socket S11, and observe all specified ratings and standards.
| Manufacturer Part Number | 31CSP2E230 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85389091 |
| Barcode | 8013975091944 |
