31CSP2E220 - SEQUENCE RELAY CSP2E 220VAC

Why Choose the 31CSP2E220?

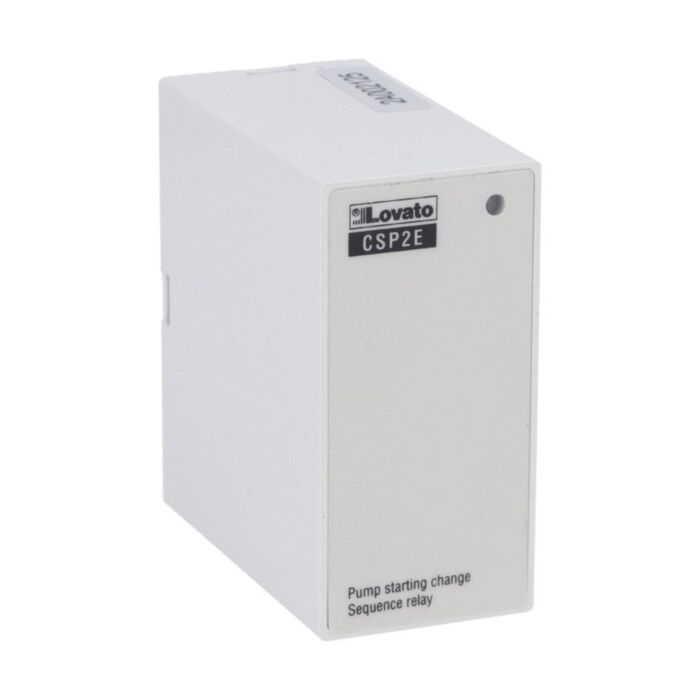

Lovato 31CSP2E220 is a CSP2E start-up priority change relay designed for dependable duty/standby motor control. This 11-pin plug-in device (socket S11) provides two relay outputs and operates from a 220VAC supply, managing start-up priority and enabling possible starting of a stand-by motor. With robust 5 A Ith switching and 4 kV impulse withstand, it suits industrial control panels requiring reliable sequencing and resilience.

Built to perform across -20 to +60 °C, this compact 150 g relay delivers consistent operation in varied environments. Conformance to IEC/EN 60255-5 underpins electrical endurance, while the plug-in format streamlines maintenance and replacement. Ideal where start-up priority must be enforced and a standby motor can be brought online, the CSP2E range integrates cleanly into existing 220VAC control architectures.

Key Benefits

• Ensures start-up priority and standby motor starting capability.
• Plug-in 11-pin housing simplifies installation, swap-out, and maintenance.
• Two relay outputs support flexible control and sequencing requirements.
• Designed for 220VAC supply, enabling straightforward panel integration.
• 5 A Ith rating supports dependable switching performance.
• 4 kV impulse withstand improves resilience to electrical transients.
• Operates from -20 to +60 °C for harsh environments.
• Conforms to IEC/EN 60255-5 for assured compliance.

Technical Specification

• Product type designation: CSP2E
• Ith (IEC): 5 A
• Rated impulse withstand voltage Uimp: 4 kV
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C
• Weight: 150 g

What’s Included

• Lovato CSP2E start-up priority change relay, SKU 31CSP2E220
• Basic installation and safety information
• Manufacturer packaging for transit protection

Applications

• Duty/standby pump sets requiring start-up priority and standby starting
• Fans and air handling units with redundant motors
• Conveyors or drives needing alternating priority control
• Industrial process equipment requiring reliable sequencing at 220VAC
• HVAC and building services panels using 11-pin plug-in relays

Safety note: Installation must be performed by qualified personnel. Isolate the 220VAC supply before wiring and operate only within the stated ratings and environmental limits.
