31CSP2E110 - SEQUENCE RELAY CSP2E 110VAC

Why Choose the 31CSP2E110?

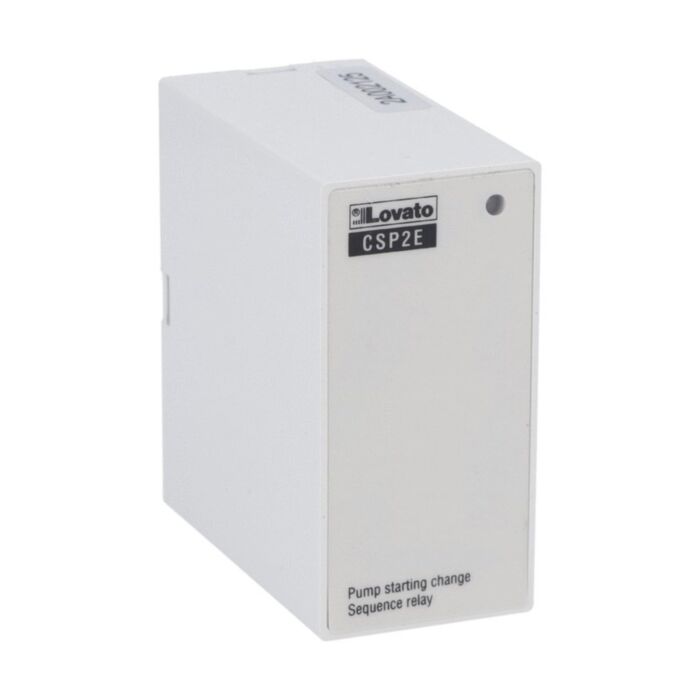

Lovato’s 31CSP2E110 is a start-up priority change relay designed to manage sequencing and the possible starting of a stand-by motor. This plug-in unit fits an 11-pin S11 socket and runs on a 110VAC supply, with two relay outputs for flexible control. Part of the CSP2E family, it offers a compact, serviceable format suited to control panels and machine systems where AC-powered, relay-based priority logic is required.

Built for dependable performance, the CSP2E relay carries an Ith (IEC) of 5 A and a rated impulse withstand voltage of 4 kV. It operates from -20 to +60 °C and stores from -30 to +80 °C, weighing just 150 g. Conformance to IEC/EN 60255-5 supports integration in compliant control schemes across industrial environments.

Key Benefits

• Start-up priority control with option to start a stand-by motor.
• Two relay outputs enable straightforward sequencing and switching tasks.
• 11-pin plug-in housing fits socket S11 for quick installation.
• Operates on 110VAC supply for easy integration with AC control systems.
• 4 kV impulse withstand voltage enhances insulation coordination and robustness.
• 5 A Ith rating accommodates typical control circuit loads reliably.
• Wide operating range from -20 to +60 °C suits varied environments.
• Conforms to IEC/EN 60255-5 for assured compliance in control panels.

Technical Specification

• Product type designation: CSP2E
• Ith (IEC): 5 A
• Rated impulse withstand voltage Uimp: 4 kV
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C
• Weight: 150 g

What’s Included

• Lovato CSP2E start-up priority change relay, SKU 31CSP2E110
• 11-pin plug-in module for socket S11
• Installation and safety information
• Manufacturer product data sheet (online access)

Applications

• Managing start-up priority in motor-driven systems
• Automatic starting of a stand-by motor when required
• Control panels using 11-pin S11 plug-in relay sockets
• AC 110 V control circuits requiring two relay outputs
• Sequencing tasks in relay-based industrial automation

Safety note: Installation should be performed by qualified personnel. Isolate the 110VAC supply before wiring, use the correct S11 socket, and observe the specified ratings and temperature limits.
