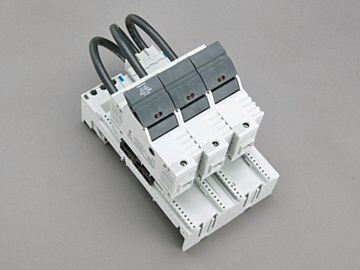

31970 Wohner busbar mounted fuse holder Class J
MPN: 31970
Alt. SKU: 31970000
Special Price
£180.76
£150.63
Regular Price
£225.95
Why Choose the Busbar Mounted Fuse Holder Class J (31970)?
The busbar mounted fuse holder Class J (31970) is designed for reliable and safe electrical protection in industrial applications. It supports fuse links Class J from 35 to 60 A (27x60) and features an integrated LED for easy status indication. Its compatibility with various busbar sizes and sections ensures versatile installation options, making it an ideal choice for robust power distribution systems.
Key Benefits
- Supports fuse links Class J 35 - 60 A for high current protection.
- Integrated LED indicator for quick visual status checks.
- Compatible with multiple busbar dimensions (12, 15, 20, 25, 30 x 5, 10 mm) and section busbars.
- Complete 3-pole solution based on a busbar adapter for streamlined installation.
- Halogen-free construction enhances environmental safety.
- Certified to multiple standards including UL 4248-8, UL 508, and CSA for assured quality and compliance.
- Mechanical product that does not carry current, ensuring safe and reliable fuse mounting.
Technical Specifications
- Item number: 31970
- Description: busbar mounted fuse holder Class J
- Rated current: 60 A
- Rated voltage AC: 600 V
- Rated voltage DC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 126 x 200 x 157 mm
- Weight: 131.0 kg/100
- Halogen free: Yes
- Approval: UL 4248-8
- Approval: UL 508
- Approval: CSA , UL
- Approval: type number: EEC6080-L + AJC60
- Approval: UL file: E230163, UL category (for USA): IZLT https://www.ul.com
- Approval: UL file 2: E123577, UL category+ (for USA): NMTR https://www.ul.com
- Approval: UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
Frequently Asked Questions
What fuse links are compatible with this fuse holder?
This fuse holder is compatible with Class J fuse links rated between 35 and 60 A (27x60 mm).
Does this fuse holder carry current?
No, this is a mechanical fuse holder designed to securely mount fuses and does not carry current itself.
What busbar sizes can this fuse holder be mounted on?
It can be mounted on busbars sized 12, 15, 20, 25, and 30 mm width with thicknesses of 5 or 10 mm, as well as section busbars.
Is the product environmentally friendly?
Yes, the fuse holder is halogen free, supporting safer disposal and reduced environmental impact.
What certifications does this product have?
It is approved under UL 4248-8, UL 508, CSA, and holds multiple UL and CSA files ensuring compliance with North American standards.
| Manufacturer Part Number | 31970 |
|---|---|
| Barcode | 4021267319700 |
| Height | 200mm |
| Width | 126mm |
| Depth | 157mm |
| Alternative Product SKU | 31970000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
