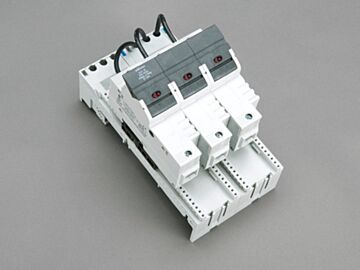

31968 Wohner busbar mounted fuse holder Class J
MPN: 31968
Alt. SKU: 31968000
Special Price
£159.43
£132.86
Regular Price
£199.28
Why Choose the Busbar Mounted Fuse Holder Class J (31968)?
The Busbar Mounted Fuse Holder Class J (31968) offers a reliable and efficient solution for protecting electrical circuits with fuse links Class J rated from 1 to 30 A. Designed for seamless integration with busbars of various sizes, it ensures secure and stable connections. Its built-in LED indicator provides clear visual status, enhancing maintenance and operational safety. This product is halogen-free, supporting environmentally responsible installations, and carries multiple international approvals, guaranteeing compliance and quality.
Key Benefits
- Supports fuse links Class J 1 - 30 A (21x57) for versatile protection.
- Equipped with LED indicator for easy fuse status monitoring.
- Compatible with busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars.
- Compact dimensions (108 x 200 x 145 mm) for space-efficient installation.
- Halogen-free construction for safer and eco-friendly applications.
- Rated for 30 A current and 600 V AC/DC voltage, suitable for various industrial uses.
- Meets stringent UL and CSA approvals ensuring high safety and quality standards.
- Mechanical product that does not carry current itself but securely holds fuse links.
Technical Specifications
- Item number: 31968
- Description: busbar mounted fuse holder Class J
- Rated current: 30 A
- Rated voltage AC: 600 V
- Rated voltage DC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 108 x 200 x 145 mm
- Weight: 110.0 kg/100
- Halogen free: Yes
- Approval: UL 4248-8
- Approval: UL 508
- Approval: CSA , UL
- Approval: type number: EEC6032-L + AJC30
- Approval: UL file: E230163, UL category (for USA): IZLT https://www.ul.com
- Approval: UL file 2: E123577, UL category+ (for USA): NMTR https://www.ul.com
- Approval: UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
Frequently Asked Questions
What type of fuses does this holder support?
This fuse holder supports Class J fuse links rated from 1 to 30 A with dimensions 21x57 mm.
Is the fuse holder suitable for both AC and DC applications?
Yes, it is rated for 600 V in both AC and DC applications, making it versatile for various electrical systems.
Does the fuse holder carry current itself?
No, as a mechanical product, it securely holds the fuse links but does not carry current itself.
What busbar sizes are compatible with this fuse holder?
It is compatible with busbars sized 12, 15, 20, 25, 30 mm width and 5 or 10 mm thickness, as well as section busbars.
Is the product environmentally friendly?
Yes, the fuse holder is halogen-free, supporting safer and more environmentally responsible installations.
| Manufacturer Part Number | 31968 |
|---|---|
| Barcode | 4021267319687 |
| Height | 200mm |
| Width | 108mm |
| Depth | 145mm |
| Alternative Product SKU | 31968000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
