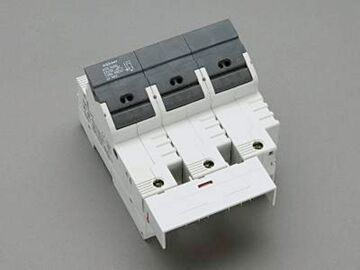

31943 Wohner holder for cylindrical fuses, with pilot switch
MPN: 31943
Alt. SKU: 31943000
Special Price
£93.17
£77.64
Regular Price
£116.46
Why Choose the Holder for Cylindrical Fuses with Pilot Switch (31943)?
The holder for cylindrical fuses with pilot switch (Part No.: 31943 000) is designed for reliable and safe fuse mounting in panel applications. It supports fuse links with striker pins and is suitable for mounting rails, ensuring easy installation and maintenance. Its large clamping range accommodates various fuse sizes, enhancing versatility. Certified to multiple international standards including UL, CSA, and CCC, this holder guarantees compliance and safety in demanding electrical environments.
Key Benefits
- Supports fuse links with striker pins for enhanced safety and clear fault indication.
- Large clamping range allows flexible use with different fuse sizes.
- Includes a pilot switch for visual indication of fuse status.
- Suitable for mounting rail installation, simplifying panel integration.
- Halogen-free materials promote environmental safety.
- Robust design rated for 80 A current and 600 V voltage (AC and DC).
- Complies with international approvals: UL 4248-1, CSA, UL, CCC.
- High short-circuit current rating (SCCR) of 100 kA ensures protection under fault conditions.
Technical Specifications
- Item number: 31943
- Description: holder for cylindrical fuses, with pilot switch
- Rated current: 80 A
- Rated voltage AC: 600 V
- Rated voltage DC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 108 x 146 x 69 mm
- Weight: 54.1 kg/100
- Halogen free: Yes
- Approval: UL 4248-1
- Approval: CSA , UL , CCC
- Approval: for UL feeder circuits >250V
- Approval: type number: AES22x58
- Approval: UL file: E230163, UL category (for USA): IZLT https://www.ul.com
- Approval: UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 6225-01 https://directories.csa-international.org
- Approval: CCC certificate: 2012010302584095
Frequently Asked Questions
What type of fuses does this holder support?
This holder supports cylindrical fuse links with striker pins, ensuring clear fault indication.
Is the holder suitable for direct current (DC) applications?
Yes, it is rated for use up to 600 V DC, making it suitable for both AC and DC circuits.
Does this product carry current?
This is a mechanical holder designed to securely mount fuses; it does not carry current itself but facilitates safe fuse operation.
What mounting options are available?
The holder is designed for mounting on standard mounting rails, simplifying installation in panel systems.
Is the product environmentally friendly?
Yes, the holder is made from halogen-free materials, supporting safer disposal and reduced environmental impact.
| Manufacturer Part Number | 31943 |
|---|---|
| Barcode | 4021267319434 |
| Height | 146mm |
| Width | 108mm |
| Depth | 69mm |
| Alternative Product SKU | 31943000 |
| Manufacturer | Wohner |
| Packed Quantity | 2 |
