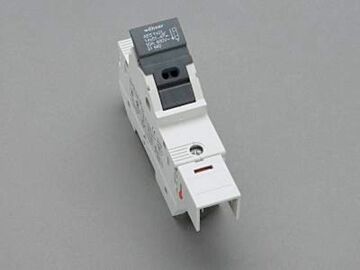

31940 Wohner holder for cylindrical fuses, with pilot switch
MPN: 31940
Alt. SKU: 31940000
Special Price
£30.14
£25.12
Regular Price
£37.68
Why Choose the Holder for Cylindrical Fuses with Pilot Switch (31940)?
This fuse holder is designed to provide a reliable and safe mounting solution for cylindrical fuses with striker pins. Its compatibility with mounting rails and a large clamping range ensures secure installation and easy labelling. The integrated pilot switch offers visual indication of fuse status, enhancing operational safety and maintenance efficiency. Suitable for panel mounting, this product meets stringent international approvals, guaranteeing quality and compliance in demanding electrical environments.
Key Benefits
- Supports fuse links with striker pins for enhanced safety.
- Large clamping range accommodates various fuse sizes and allows for clear labelling.
- Includes a pilot switch to indicate fuse condition visually.
- Designed for mounting rail installation, simplifying integration into panels.
- Halogen-free construction supports environmentally responsible applications.
- Certified to multiple international standards including UL, CSA, and CCC for global use.
- Robust design suitable for rated currents up to 50 A and voltages up to 600 V AC/DC.
Technical Specifications
- Item number: 31940
- Description: holder for cylindrical fuses, with pilot switch
- Rated current: 50 A
- Rated voltage AC: 600 V
- Rated voltage DC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 27 x 124 x 69 mm
- Weight: 11.6 kg/100
- Halogen free: Yes
- Approval: UL 4248-1
- Approval: CSA , UL , CCC
- Approval: for UL feeder circuits >250V
- Approval: type number: AES14x51
- Approval: UL file: E230163, UL category (for USA): IZLT https://www.ul.com
- Approval: UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 6225-01 https://directories.csa-international.org
- Approval: CCC certificate: 2004010302117255
Frequently Asked Questions
What type of fuses does this holder support?
This holder is designed for cylindrical fuses with a striker pin, specifically 14 x 51 mm size.
Is the holder suitable for direct current applications?
Yes, the holder is rated for both AC and DC voltages up to 600 V.
Does the holder carry current?
This is a mechanical holder designed to securely mount fuses; it does not carry current itself but facilitates electrical connection through the fuse links.
What mounting options are available?
The holder is designed for mounting on standard mounting rails, making installation straightforward in panel systems.
Are there any environmental considerations?
The holder is halogen-free, supporting environmentally friendly installations.
| Manufacturer Part Number | 31940 |
|---|---|
| Barcode | 4021267319403 |
| Height | 124mm |
| Width | 27mm |
| Depth | 69mm |
| Alternative Product SKU | 31940000 |
| Manufacturer | Wohner |
| Packed Quantity | 6 |
