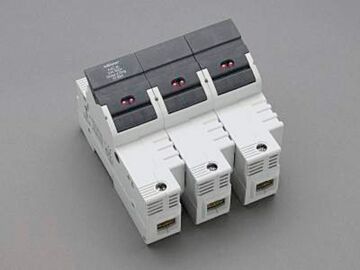

31934 Wohner holder for cylindrical fuses, with LED
MPN: 31934
Alt. SKU: 31934000
Special Price
£111.84
£93.20
Regular Price
£139.80
Why Choose the Holder for Cylindrical Fuses with LED (31934)?
This fuse holder is designed for reliable and safe mounting of cylindrical fuses in panel applications. Featuring a built-in LED indicator, it provides clear visual feedback for tripped fuses, enhancing maintenance efficiency. Its large clamping range accommodates two identical adjacent conductors, ensuring versatile installation options. Suitable for both AC and DC voltage applications, it supports any polarity for DC, making it highly adaptable. The holder is halogen-free, supporting environmentally responsible installations, and is approved by major safety standards including UL and CSA.
Key Benefits
- Integrated LED indicator for quick identification of blown fuses
- Large clamping range allows connection of two identical adjacent conductors
- Compatible with Class J / 3P cylindrical fuses (21x57 mm)
- Suitable for mounting on rails, simplifying panel assembly
- Supports both AC and DC voltages up to 600 V with any polarity for DC
- Halogen-free construction for safer and more sustainable installations
- Complies with UL 4248-8, UL 4248-1, and CSA approvals for assured quality and safety
Technical Specifications
- Item number: 31934
- Description: holder for cylindrical fuses, with LED
- Rated current: 30 A
- Rated voltage AC: 600 V
- Rated voltage DC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 108 x 115 x 69 mm
- Weight: 48.6 kg/100
- Halogen free: Yes
- Approval: UL 4248-8
- Approval: UL 4248-1
- Approval: CSA , UL
- Approval: for UL feeder circuits >250V
- Approval: type number: AJC30
- Approval: UL file: E230163, UL category (for USA): IZLT https://www.ul.com
- Approval: UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 6225-01 https://directories.csa-international.org
Frequently Asked Questions
Does this fuse holder carry current?
Yes, this is an electrical fuse holder designed to carry current up to 30 A at rated voltages.
Is the fuse holder suitable for DC applications?
Yes, it supports DC voltages up to 600 V and can be used with any polarity for DC voltage applications.
Can two conductors be connected simultaneously?
Yes, the large clamping range allows for two identical adjacent conductors to be connected securely.
What approvals does this product have?
The product is approved to UL 4248-8, UL 4248-1, CSA standards, and is suitable for UL feeder circuits above 250 V.
Is this product environmentally friendly?
Yes, the fuse holder is halogen-free, supporting safer and more sustainable electrical installations.
| Manufacturer Part Number | 31934 |
|---|---|
| Barcode | 4021267319342 |
| Height | 115mm |
| Width | 108mm |
| Depth | 69mm |
| Alternative Product SKU | 31934000 |
| Manufacturer | Wohner |
| Packed Quantity | 2 |
